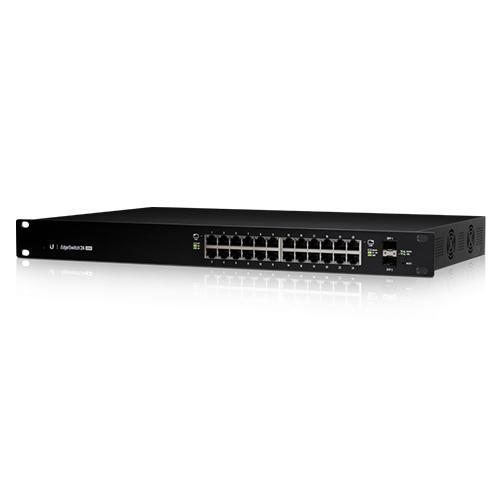

Ubiquiti Edge Switch ES-24 (250W)
Managed PoE+ Gigabit Switch with SFP
Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch® delivers robust performance, PoE+ support and intelligent switching for growing networks.
Product Highlights
• Powerful Enterprise Switch Models
• Enterprise-Class Features
• Optical Fiber Backhaul
• Convenient PoE+ Support
• Breakthrough Value
• Advanced UI
• (24) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpp
• Maximum Power Consumption: 500W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable
• Dimensions : 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
• Networking Interfaces: (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
• Management Interface : (1) RJ45 Serial Port, Ethernet In/Out Band
• Certifications : CE, FCC, IC
• Rackmount: Yes, 1U High
• ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% Noncondensing
• Shock and Vibration: ETSI300-019-1.4 Standard
