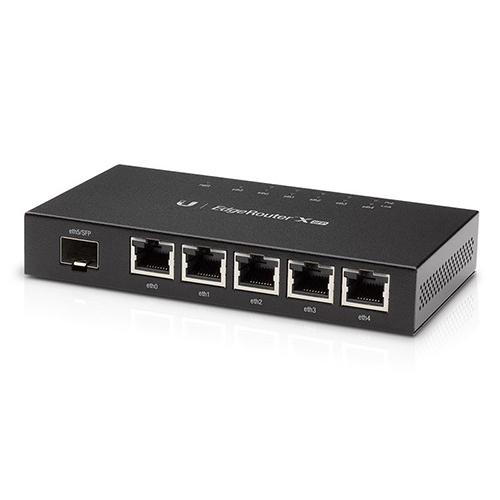

Ubiquiti Edge Router X SFP
Advanced Gigabit Router with PoE and SFP
The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.
Product Highlights

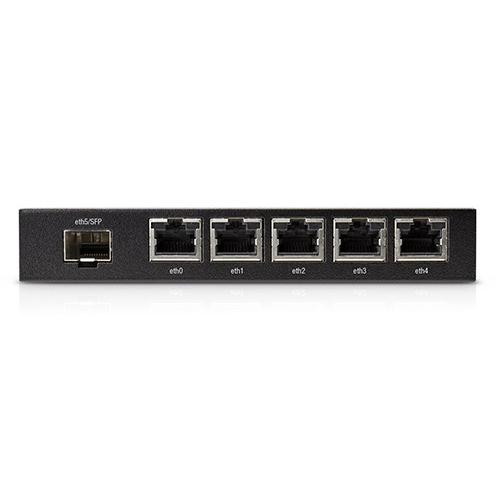

• (5) Gigabit RJ45 ports with passive PoE support
• (1) Gigabit SFP port for backhaul applications
• Ports configurable for line-rate, Layer-2 switching
• 130 kpps for 64-byte packets
• 1 Gbps for 1518-byte packets
• Dimensions: 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
• Weight: 215 g (7.58 oz)
• Max. Power Consumption: 5W
• Power Input: 24VDC, 2.5A Power Adapter (Included)
• Power Supply: External AC/DC Adapter
• Supported Voltage Range: 9 to 26VDC
• Buttons: Reset
• LEDs: Power, Link/Activity (6), PoE (5)
• Processor: Dual-Core 880 MHz, MIPS1004Kc
• Memory: 256 MB DDR3 RAM
• Code Storage: 256 MB NAND
• Certifications: CE, FCC, IC
• Wall Mount : Yes
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 to 90% Noncondensing
