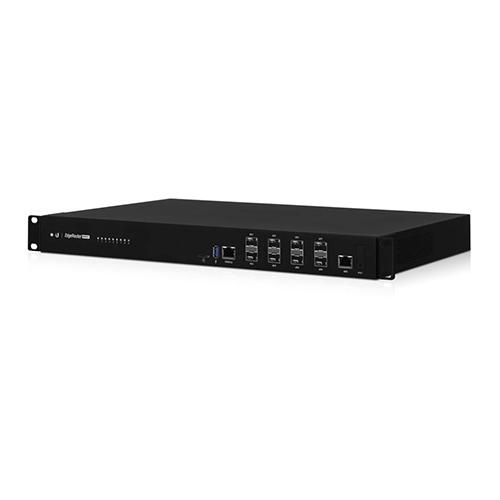

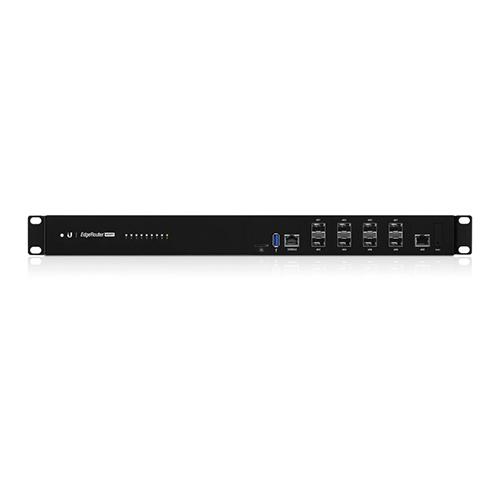

Ubiquiti Edge Router Infinity
The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rack-mountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).
Product Highlights
• (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port
• Hot-Swappable Modular Power Supplies
• 16-Core, 1.8 GHz Processor
• Rack-mountable
• Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
• Weight: Without Mount: 4.950 kg (10.91 lb) With Mount: 5.045 kg (11.12 lb)
• Max. Power Consumption: 100W
• Power Method: 110 - 240VAC
• Power Supply: (2) Hotswappable AC/DC PSU
• Supported Voltage Range: AC Input: 100 to 240VAC
• Button: Reset
• Processor: MIPS64 16 Core 1.8 GHz
• System Memory: 16 GB DDR4 RAM
• On-Board Flash Storage: 8 MB NOR Flash 4 GB eMMC NAND Flash
• LEDs: System: Status SFP+ Data Ports: Link/Activity RJ45 Data Port: Link/Activity
• Interfaces: Serial Console Port: (1) RJ45 Serial Port Data Ports: (1) RJ45 Serial Port, (8) SFP+ Ports (1) RJ45 Gigabit Ethernet Port
• Certifications: CE, FCC, IC
• Rackmount: Yes
