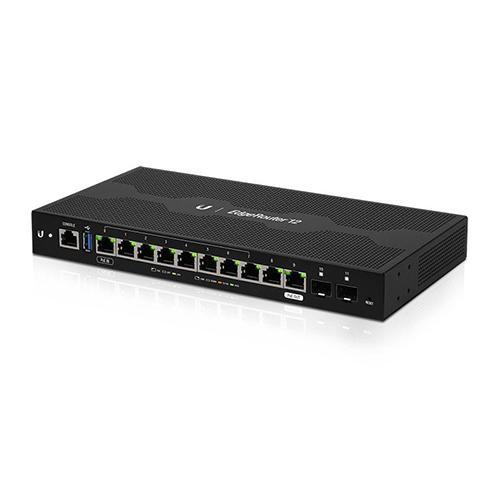

Ubiquiti Edge Router 12
The EdgeRouter 12 is a high-performance Gigabit Router with PoE flexibility. With increased performance over the previous generation of routers, the EdgeRouter 12 delivers up to 3.4 million pps for 64-byte packets. Ten Gigabit Ethernet ports offer copper connectivity, while two SFP ports offer fiber connectivity. The EdgeRouter 12 supports Layer-2 switching and scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).
Product Highlights
• The EdgeRouter™ 12/12P offers next-generation price/performance value
• The EdgeRouter 12/12P supports Layer 2 switching
• EdgeRouter 12P supports 24V PoE output on ten RJ45 ports.
• The EdgeRouter 12 can be rack-mounted with the use of the EdgeRouter Rack
• Supported and managed by UNMS™ (Ubiquiti® Network Management System)
• Dimensions: 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22")
• Weight : 700 g (1.54 lb)
• Max. Power Consumption : 20W (Excludes PoE Output)
• Power Method: External AC/DC Power Adapter, 24W (24V, 1A) (Included) 24V Passive PoE
• Power Supply : External AC/DC Adapter
• Supported Voltage Range: DC 9 - 30VDC 24V Passive PoE 20 - 30V
• Button: Reset
• LEDs: Data Ports SFP Data Port Speed/Link/Activity, PoE (Port 9 Only) Link/Activity
• Processor: 4-Core 1 GHz, MIPS64
• System Memory: 1 GB DDR3 RAM
• On-Board Flash Storage: 4 GB eMMC, 8 MB SPI NOR
• Mounting Wall: Rack*
• Operating Temperature: -10 to 50° C (14 to 122° F)
• Operating Humidity: 10 - 90% Noncondensing
