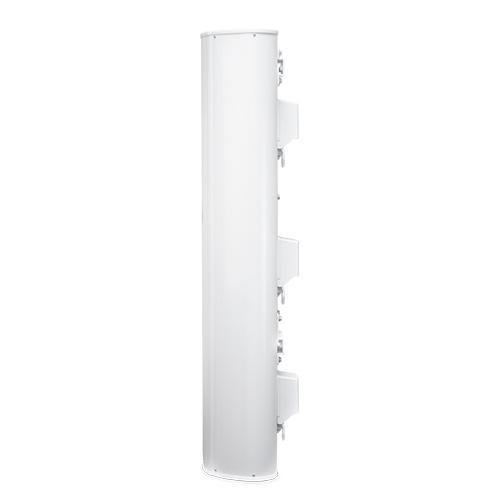

Ubiquiti airPrism Sector Antenna AP-5AC-90-HD
5 GHz, 3x30° HD Sector Antenna
The innovative airPrism® Antenna features significant advances in noise isolation and beam performance for co location deployments in a multipoint network.
Product Highlights
• Three Rocket5ac Prism radios mounted on a single airPrism antenna.
• Superior beam performance
• Plug and Play Integration
• Dimensions*: 322.6 x 201.5 x 1300 mm
7. x 7.93 x 51.18")
• Weight: 13.1 kg (28.9 lb)
• Frequency Range: 5.15 - 5.85 GHz
• Gain: 22 dBi
• HPOL Beamwidth: 3 x 30° (6 dB)
• VPOL Beamwidth: 3 x 30° (6 dB)
• Electrical Beamwidth: 8°
• Electrical Downtilt: 2°
• Max. VSWR: 1.75:1
• Polarization Dual-Linear
• Cross-Polarization Isolation: 30 dB Min.
• Interfaces: (6) RP-SMA Connectors (Weatherproof )
• Compatible Radio: Rocket5ac Prism, model R5AC-PRISM
• Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
