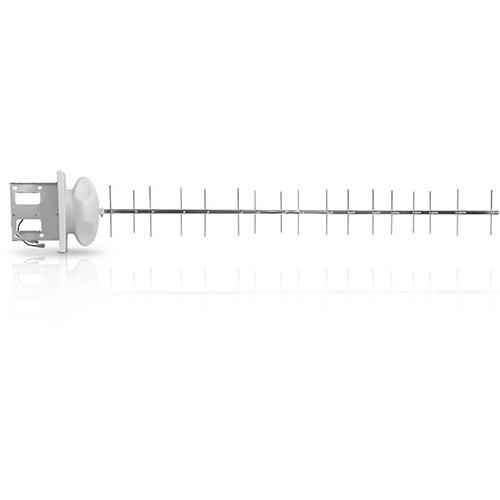

Ubiquiti airMAX Yagi Antenna AMY-9M16
airMAX® 2x2 High-Gain Yagi Antenna
Pair the airMAX® Yagi Antenna with a Rocket™M900 BaseStation for directive coverage in Point-to-Point (PtP) bridging or Point-to-Multipoint (PtMP) networks. Is a high-gain array antenna designed to seamlessly integrate with the RocketM900 radio (sold separately). It features incredible range performance of up to 20+ km and speeds of90+ Mbps.
Product Highlights
• Ultimate in RF Performance
• Easily Integrates with Rocket® M900 (sold separately)
• 2x2 Dual-Polarity Design
• Long-Range Deployments
• Durable Construction
• Dimensions: 1365 x 215 x 218 mm
• Weight (Mount Included): 2.5 kg
• Frequency Range: 902 - 928 MHz
• Gain: 16 dBi, Both Polarizations
• HPOL Beamwidth: 29 to 34°
• VPOL Beamwidth: 29 to 34°
• F/B Ratio: 20 dB
• Max. VSWR: < 1.5:1 Over Band
• Wind Survivability: 200 km/h (125 mph)
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 20 dB
• ETSI Specification: EN 302 326 DN2
• Mounting: M8 U-Bolt Pole Mounting Kit, Rocket Bracket, and Weatherproof RF Connectors Included
