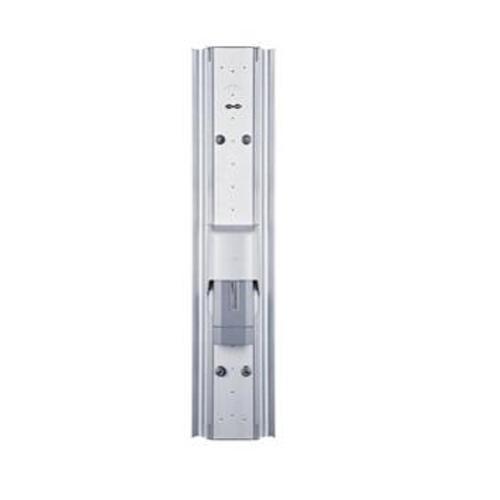

Ubiquiti airMAX Titanium Sector AM‑V5G‑Ti
Advanced Carrier-Class PtMP Basestation Antenna
Introducing the airMAX® Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.
Product Highlights
• Carrier-Class 2x2 MIMO PtMP BaseStation
• Adjustable Beamwidth Configuration
• Reduced Co-Location Interference
• Adjustable Beamwidth Configuration
• Easily Mount and Protect Your Rocket
• Dimensions: 721 x 149.1 x 75.7 mm (28.39 x 5.87 x 2.98")
• Weight: 3.72 kg (8.20 lb)
• Frequency Range: 5.45 - 5.85 GHz
• Beamwidth Angles: 60°/ 90°/ 120°
• Gain (Beamwidth Dependent)
• 60° 21 dBi 90° 20 dBi 120° : 19 dBi
• Elevation Beamwidth: 4°
• Electrical Downtilt: 2°
• Polarization: Dual Linear
• Cross-Pol Isolation: 25 dB Typical
• Front-to-Back Ratio: 30 dB Typical
• Max. VSWR 1.5:1
• RF Connectors :2 RP-SMA Connectors (Weatherproof )
• Compatible Radios: 5 GHz Rocket
• Mounting: Pole Mount (Kit Included)
