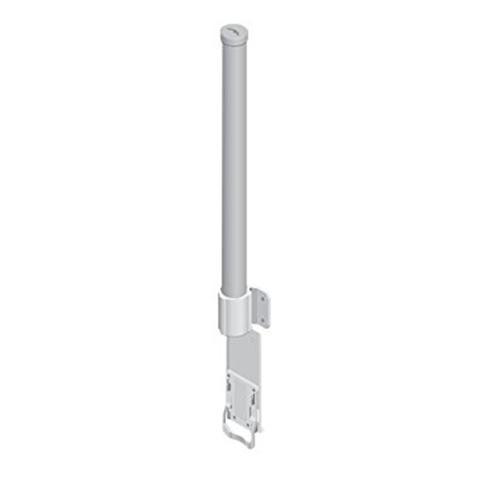

Ubiquiti airMAX Omni Antenna AMO-5G13
AMO-5G13
airMAX® 2x2 Omni Antenna
Pair the airMAX® Omni Antenna with a Rocket™M BaseStation for 360° coverage in Point-to-MultiPoint (PtMP) networks
Product Highlights
• High Performance, Long Range
• Seamlessly Integrates with Rocket® Radio
• 360° Coverage
• Industrial-Strength Construction
• Dimensions: 799 x 90 x 65 mm
• Weight: 0.82 kg
• Frequency Range: 5.45 - 5.85 GHz
• Gain: 13 dBi
• Elevation Beamwidth: 7°
• Max VSWR: 1.5:1
• Downtilt: 2°
• Polarization: Dual-Linear
• Cross-pol Isolation: 25 dB min
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
