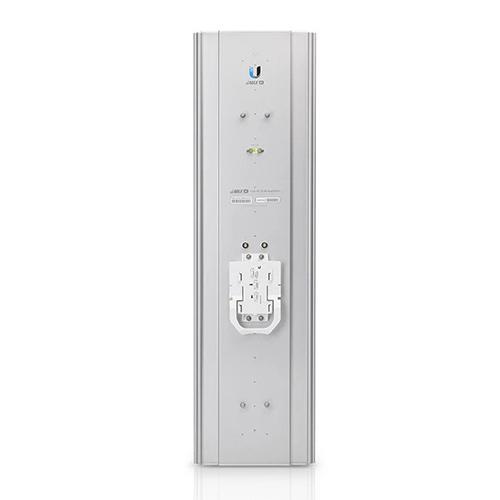

Ubiquiti airMAX AC Sector Antenna AM-5AC21-60
airMAX® ac 2x2 BaseStation Sector Antenna
The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point to MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac
Product Highlights
• The airMAX® ac Sector Antennas feature carrier-class construction
• Superior Noise Immunity
• Market-Leading Beam Performance
• Industrial-Strength Construction
• Every airMAX® ac Antenna has a built-in Rocket™ mount
• Dimensions: 750 x 173 x 78 mm
• Weight† 4.8 kg
• Frequency Range: 5.10 - 5.85 GHz
• Gain: 21 dBi
• HPOL Beamwidth: 60° (6 dBi)
• VPOL Beamwidth: 60° (6 dBi)
• Electrical Beamwidth: 4°
• Electrical Downtilt: 2°
• Max. VSWR: 1.5:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 391 N @ 200 km/h (88 lbf @ 125 mph)
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 25 dB Min.
• ETSI Specification: EN 302 326 DN1
• Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
