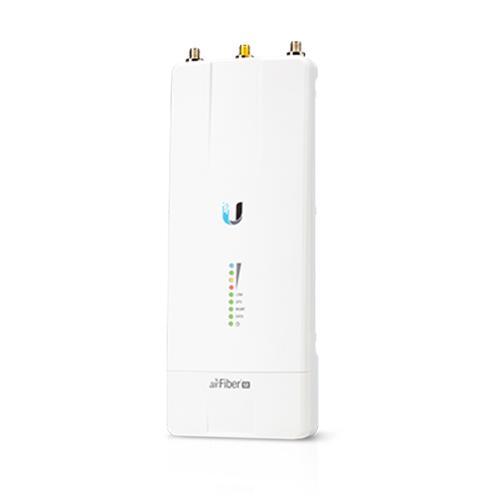

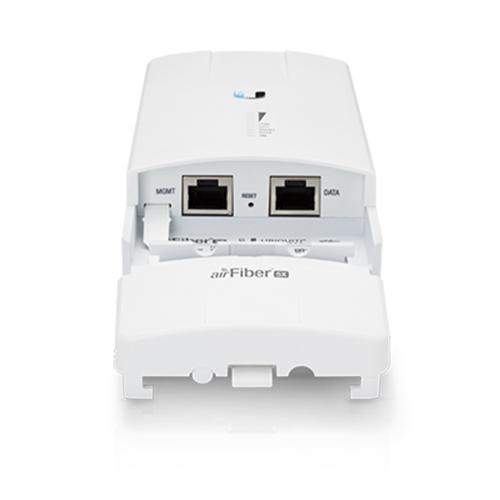

Ubiquiti airFiber X AF-5X
The airFiber® X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
Product Highlights
• Engineered for Performance
• Deployment Flexibility
• Carrier Backhaul for the World
• Optimal Operation and Channel Configuration
• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
• Weight: 0.35 kg (0.77 lb)
• GPS: External, Magnetic Base
• Operating Frequency: FCC 15.407 5150 - 5350 MHz, 5470 - 5850 MHz IC RSS-210 5470 - 5600 MHz, 5650 - 5850 MHz ETSI EN 301 893, EN 302 502 5470 - 5875 MHz Other Regions 5150 - 5950 MHz2
• Power Supply: 24V, 1A PoE Gigabit Adapter (Included)
• Power Method: Passive Power over Ethernet
• Maximum Power Consumption: 12W
• Supported Voltage Range: 19-29VDC
• Mounting: airFiber X Mount (Rocket Mount Compatible)
• GPS: Pole Mount (Included)
• Certifications: CE, FCC, IC
• Operating Temperature: -40 to 55° C (-40 to 131° F)
• Processor INVICTUS IC
• Maximum Throughput: 500+ Mbps
• Maximum Range: 200+ km (Throughput and range values may vary depending on the environmental conditions)
• Encryption: 128-bit AES
• Operating System: airOS F
