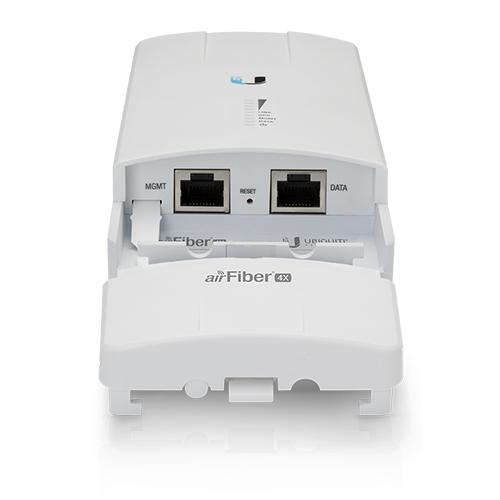

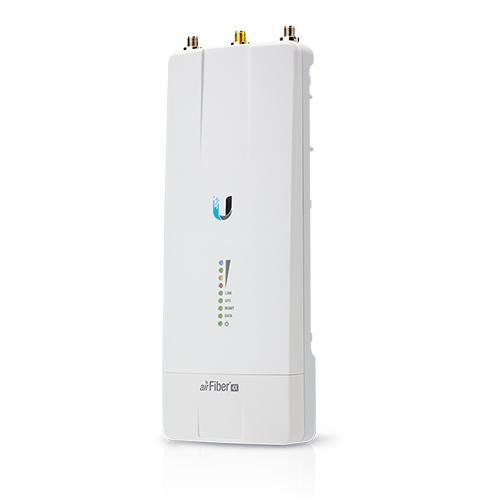

Ubiquiti airFiber X AF-4X
The airFiber® X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
Product Highlights
• Engineered for Performance
• Optimal Operation and Channel Configuration
• Deployment Flexibility
• Carrier Backhaul for the World
• Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
• Weight: 0.35 kg (0.77 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CHO, CH1)
(1) SMA Weatherproof (GPS)
• Antenna/td>: External, Magnetic Base
• Power Supply/td>: 24V, 1A PoE Gigabit Adapter (Included)
• Power Method/td> : Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
• Max. Power Consumption/td>: 12W
• Supported Voltage Range/td>: 19-29VDC
• Mounting/td>: airFiber X Mount (Rocket Mount Compatible)
• GPS: Pole Mount (Included)
• Certifications/td>: CE, FCC, IC
• Operating Temperature/td> -: 40 to 55° C (-40 to 131° F)
• Processor INVICTUS IC
• Maximum Throughput: 500+ Mbps
• Maximum Range: 200+ km1
• Encryption: 128-bit AES
• OS: airOS® F
• Wireless Modes: Master/Slave
