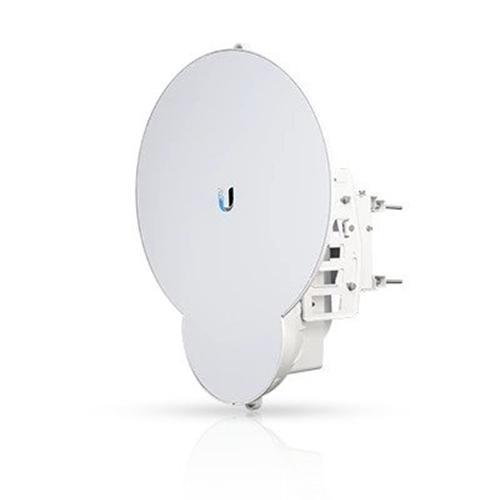

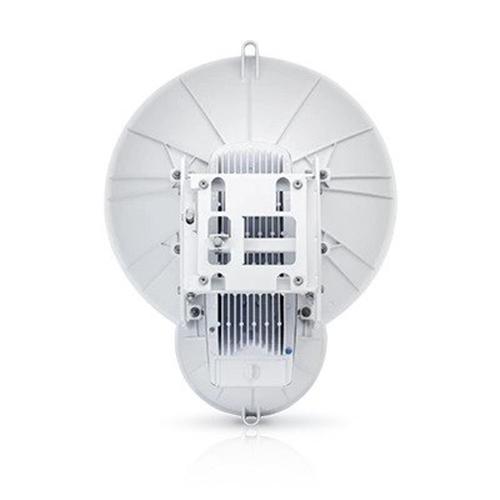

Ubiquiti airFiber AF 24HD
Revolutionary Wireless Technology
Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks™. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Product Highlights
• Revolutionary Performance
• Proven Links: 20+ km
• Low-Latency Carrier Backhaul
• 24 GHz Unlicensed Band
• Operating Frequency 24.05 – 24.25 GHz
• Dimensions: Radio 593 x 768 x 370 mm (23.35 x 30.24 x 14.57")
• Weight: Radio (Mount Included) 17.3 kg (38.14 lb)
• Max. Power Consumption : 50W
• Power Supply: 50V, 1.2A PoE GigE Adapter (Included)
• Power Method : Passive Power over Ethernet
• Supported Voltage Range : +42 to +58VDC, -48VDC
• Certifications: CE, FCC, IC
• Wind Loading : 770 N @ 200 km/hr (170 lbf @ 125 mph)
• Wind Survivability : 200 km/hr (125 mph)
• Mounting Pole : Mount Kit (Included)
• Operating Temperature: -40 to 55° C (-40 to 131° F)
• LEDs (8) Status
