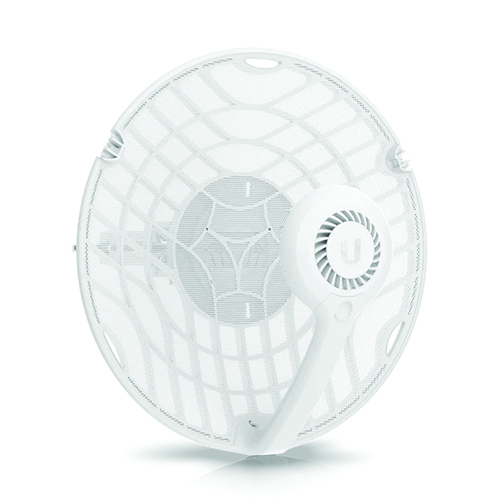

Ubiquiti airFiber 60 LR
Long-range 60 GHz PtP radio system powered by Wave Technology.
The airFiber 60 LR uses Wave Technology to establish links over 12 km and can reach a 1.9 Gbps maximum throughput rate. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.
Product Highlights
• Low interference 60 GHz radio
• Link range: over 12 km
• Link planning support via ISP Design Center
• Dimensions: Ø413 x 360 mm (Ø16.3 x 14.2")
• Weight Without mount: 1.5 kg (3.3 lb)
• With mount: 2.7 kg (6 lb)
• Enclosure materials: Aluminum, UV stabilized polycarbonate
• Mount material: Galvanized steel
• Mounting: Precision alignment kit (included)
• Pole compatibility: Ø25.4-76.2 mm (Ø1-3")
• Wind loading: 420 N at 200 km/h (94.4 lbf at 125 mph)
• Processor: Quad-Core ARM® Cortex® A7
• Memory: 256 MB DDR3
• Networking interface: (1) GbE RJ45 port
• RF Connections: Internal
• Max. Power Consumption: 18W
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )
• Power supply: 48VDC, 0.65A gigabit PoE adapter (included)
• Supported Voltage Range: 48VDC ± 10%
• ESD/EMP Protection: Air/Contact: ± 24kV
• Operating Temperature -40 to 60° C (-40 to 140° F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: FCC, IC, CE
