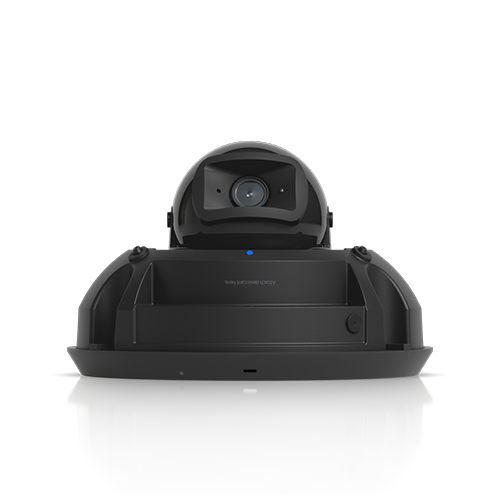

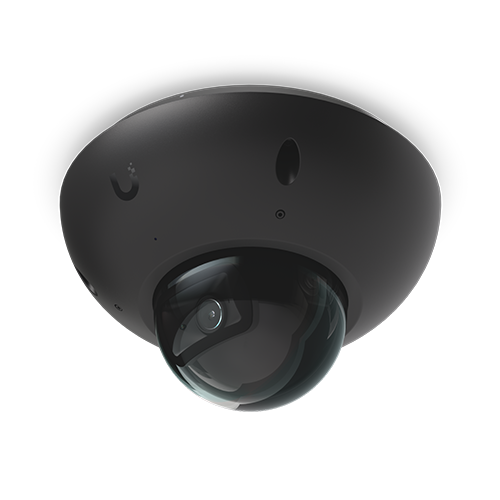

Ubiquit UniFi G6 Dome Black

UVC-G6-Dome-B

All-weather, vandal-proof 4K PoE camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.

Technical Specification
Data Sheet
Inquire Now

Dimensions
Ø144.7x 96.3 mm (Ø5.7 x 3.8")
IR Night Vision
30 m (98 ft)
Face Recognition
✓
License Plate Recognition
✓
Smart Detections (People, Vehicles, Animals)
✓
Resolution
4K
Networking Interface
10/100 MbE RJ45 port
Field of View
H: 109.9°, V: 56.7°, D: 134.1°
Audio
Microphone
Weatherproofing
IP66
Tamper Resistance
IK10
Mounting
Ceiling, Wall mount (Included) Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)
UniFi Application Suite


Protect


✓

Performance
Networking Interface
10/100 MbE RJ45 port
Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate
30 FPS
Resolution
8MP 3840 x 2160 (16:9)
Optics

Sensor
1/1.8" 8MP
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter

Hardware
Max. Power Consumption
9.25W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Quad-core Arm® Cortex®-A53 based chip
Weight
820 g (1.8 lb)
Enclosure Material
Aluminum alloy
Mount Material
Polycarbonate
Button
(1) Factory-reset
Ambient Operating Temperature
-20 to 50º C (-4 to 122º F)
Ambient Operating Humidity
0 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
