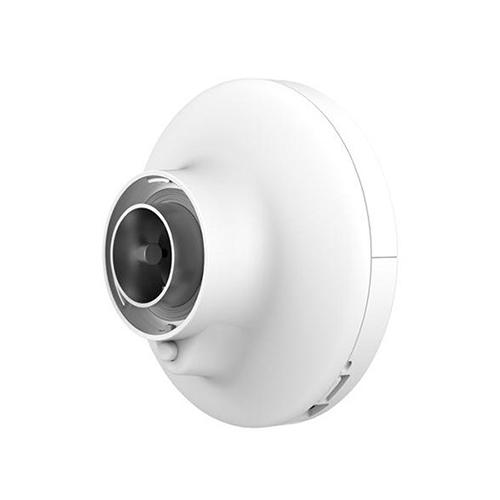

Ubiquiri Airmax AP PrismStation AC PS-5AC
Shielded airMAX® ac BaseStation with airPrism® Technology
With a die-cast aluminum base and interchangeable antenna, the PrismStationTM AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti's advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).
Product Highlights
• Improved Noise Immunity
• Modular Design
• Scalability
• Enhanced Co-Location
• Usability Enhancements
• Advanced RF Analytics
• Dimensions: 155 x 155 x 104 mm (5.16 x 5.16 x 4.09")
83 x 117 x 69 mm (3.27 x 4.61 x 2.72")
• Weight: 770 g (1.70 lb)
790 g (1.74 lb)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (1) GPS*
• Max. Power Consumption: 10W
• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range: 20 to 26VDC
• Processor Specs: MIPS 74 Kc
• Memory: 128 MB DDR2 SDRAM, 16 M NOR FLASH
• Max. VSWR: 2:1
• Polarization: Dual-Linear
