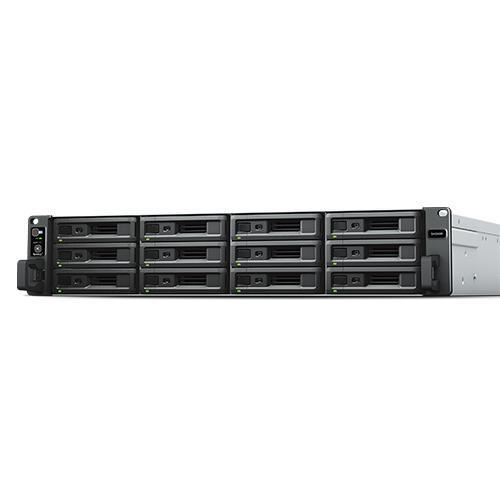

Synology SA3200D

SA3200D

Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.

• Active-passive dual controller design in a single chassis, maximizing service availability with minute-level failover time1

• Highly available infrastructure with a competitive priceperformance ratio of US$0.05 per gigabyte2

• A scalable shared storage architecture of more than 500 TB raw capacity with minimal performance impact3

• Automatic failover mechanism, protecting services in real-time and prevent a single point of failure

• Easy to deploy and manage data services intuitively with DiskStation Manager (DSM), providing a unified experience across Synology platforms and support comprehensive software applications

• Certified virtualization solution with license-free workload protection

Technical Specification
Data Sheet
Inquire Now



  • CPU (per controller): Intel Xeon D-1521 4-core 2.4 GHz, Turbo Boost up to 2.7 GHz
  • Hardware encryption engine: Yes (AES-NI)
  • Memory (per controller):  8 GB DDR4 ECC UDIMM (expandable up to 64 GB)
  • Compatible drive type:  12 x 3.5"/2.5" SAS SSD/HDD (drives not included)
  • Hot swappable drive Yes
  • External port (per controller) 1 x expansion port
  • Size:  (HxWxD) • 88 x 430.5 x 692 mm • 88 x 482 x 724 mm (with server ears)
  • Weight:  19.7 kg
  • LAN (per controller):  • 2 x 1GbE RJ-45 • 1 x 10GbE RJ-45 (10GBASE-T)
  • PCIe 3.0 slot (per controller): • 1 x 8-lane x8 slot • High-performance network interface card support
  • System fan (per controller):  2 (60 x 60 x 51 mm)
  • AC input power voltage:  100 V to 240 V AC
  • Power frequency:  50/60 Hz, single phase
  • Operating temperature:  0°C to 35°C (32°F to 95°F)
  • Storage temperature:  -20°C to 60°C (-5°F to 140°F)
  • Relative humidity:  5% to 95% RH
  • Maximum operating altitude:  5,000 m (16,400 ft)
