Synology FlashStation FS3400

FS3400

Fueling IT transformation for small and midsize businesses

Featuring an 8-core CPU and 16GB ECC RDIMM memory, FS3400 provides more than 137,000 4K random write IOPS, meeting the needs for real-time analytics, online transaction processing, and mission-critical database services.1 With built-in 10GbE Ethernet, PCIe expansion, and the support of various SAS and SATA drives, FS3400 delivers flexible and economical all-flash server deployment on demand.

• CPU:  Intel® Xeon® D-1541 8 Core 2.1 GHz

• Memory:  16GB DDR4 ECC RDIMM, up to 128GB

• Performance:  Up to 72 x SAS/SATA drives2

• Scalability: 1 x PCIe 3.0 for 25/40GbE NIC's expansion

Technical Specification
Data Sheet
Inquire Now



  • CPU Intel® Xeon® D-1541 8-core 2.1GHz, Turbo Boost up to 2.7GHz
  • Hardware encryption engine Yes (AES-NI)
  • Memory 16 GB DDR4 ECC RDIMM (expandable up to 128 GB)
  • Compatible drive type : 24 x 2.5" SAS SSD/HDD or SATA SSD (drives not included)
  • Hot swappable drive: Yes

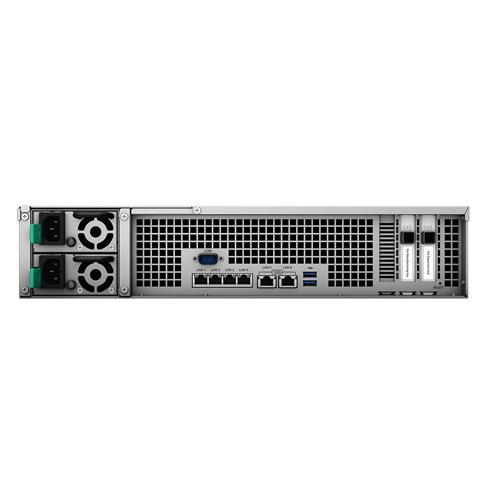

  • External port:• 2 x USB 3.0 port • 1 x Expansion port
  • Dimensions : (HxWxD) • 88 x 430.5 x 692 mm • 88 x 482 x 724 mm (with server ears)
  • Weight: 14.9 kg
  • LAN : • 2 x 10GbE RJ-45 (10GBASE-T) • 4 x Gigabit RJ-45
  • Wake on LAN/WAN :  Yes
  • PCIe 3.0 slot:  • 1 x 8-lane x8 slot • High-performance network interface card support
  • Scheduled power on/off : Yes
  • System fan :  4 (80 x 80 x 32 mm)
  • AC input power voltage : 100V to 240V AC
  • Power frequency : 50/60Hz, single phase
