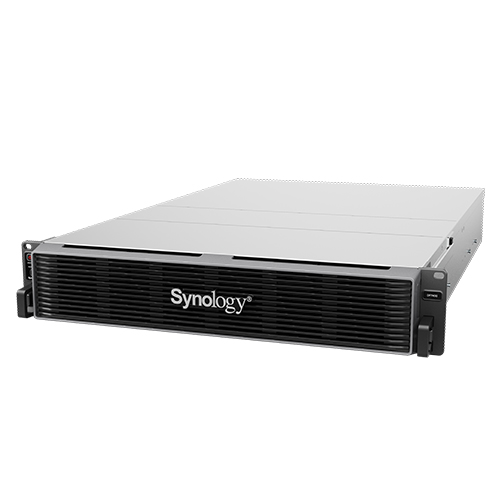

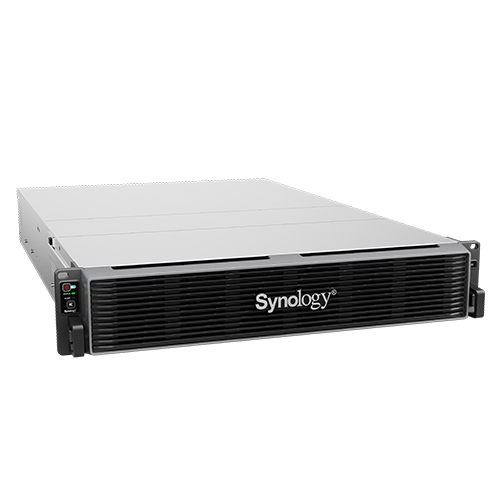

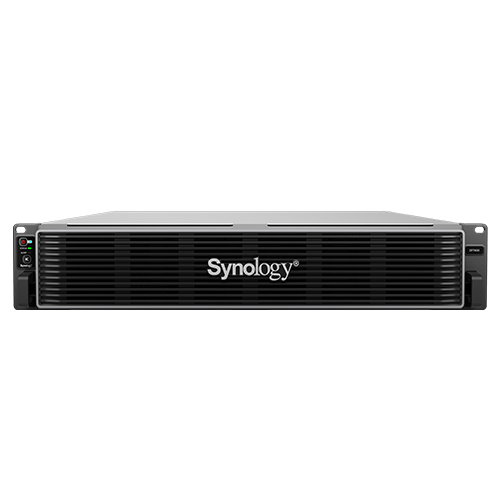

Synology DP7400
Cyber-resilient Data Protection Solution for Data Centers.
The Synology ActiveProtect appliance DP7400 is a data protection solution that comes pre-configured with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring security, the DP7400 is an ideal core management server for your company headquarters.
- Deploy quickly: Set up your server in minutes
- Set up your server in minutes: Protect VMs, SaaS, databases, physical servers, and more
- Scalability and visibility: Manage up to 150,000 workloads across multiple sites, monitor servers, and backup status
- Reliable backup: Verify backups and test your disaster recovery plan in a sandboxed environment
Form Factor :2U (RU)
CPU: AMD EPYC 7272 (12 cores)
Memory: 64 GB (Max. 512 GB)
Storage Configuration
• 10 x 20 TB HDD (RAID 6 + 1 Spare)
• 2 x 3840G SSD (RAID 1)

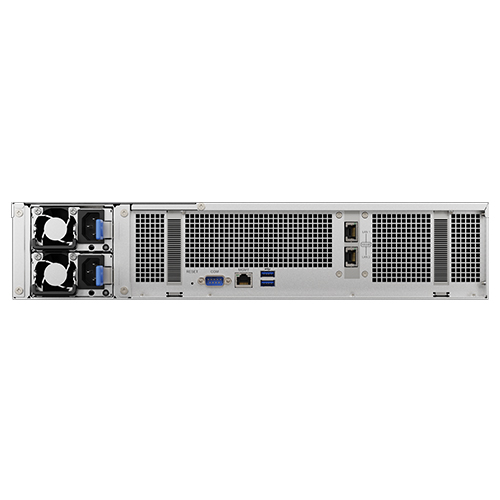

Network Interface
• 1 x 1GbE RJ-45 Port (Management)
• 2 x 10GbE RJ-45 Port (Data transfer)
(Optional) 2 x 10GbE RJ-45 / 25GbE SFP28 (Data transfer)
Dimensions: (HxWxD)
• 88 x 430.5 x 692 mm
• 88 x 482 x 724 mm (with server handles)
Weight: 23.4 kg
Operating Environment:
• Temperature: 32°F to 95°F (0°C to 35°C)
• Relative humidity: 8% to 80% RH
Storage Environment:
• Temperature: -5°F to 140°F (-20°C to 60°C)
• Relative humidity: 5% to 95% RH
