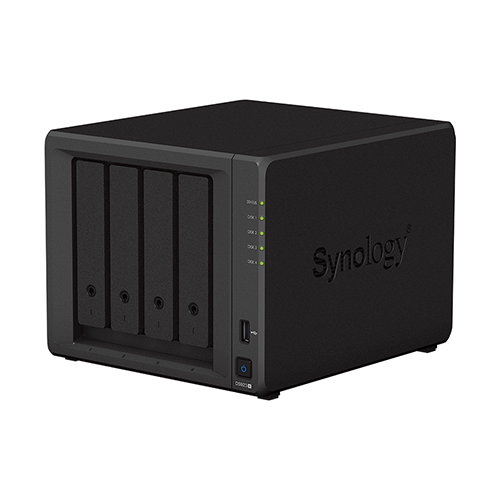

Synology DiskStation DS923+
The Synology DS923+ is a capable 4-bay NAS solution that can be adjusted and expanded as your needs change, with optional support for up to nine drives, faster networking, and NVMe SSDs for caching or additional storage pools. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance.
• Dependable Performance Up to 625/559 MB/s sequential read/write throughput makes file operations quick and efficient1
• Versatile Network Storage Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions
• Fast and Stable Connectivity Two 1GbE ports for simple integration into existing environments with optional 10GbE connectivity2 to
tackle more specialized, bandwidth-heavy applications
• Easy Capacity Expansion Add 5 extra drive bays with one DX517 expansion unit for a maximum of 9 storage drives3
• Extendable Product Support Backed by Synology's 3-year limited hardware warranty, extendable to 5 years in select markets4,5
- CPU:” AMD Ryzen™ R1600 dual-core (4-thread), max. boost clock up to 3.1 GHz
- Hardware encryption engine: AES-NI
- Memory: 4 GB DDR4 ECC SODIMM (expandable up to 32 GB)
- Compatible drive types 4 x 3.5" or 2.5" SATA HDD/SSD (drives not included) 2 x M.2 2280 NVMe SSD (drives not included) Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6
- Hot swappable drives Yes
- External ports • 2 x USB 3.2 Gen 1 ports 1 x Expansion port (eSATA)
- Form factor: Desktop
- Size: (HxWxD) 166 x 199 x 223 mm
- Weight: 2.24 kg
- LAN ports: 2 x 1GbE RJ-45
- Wake on LAN/WAN: Yes
- Network expansion: Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2
- Scheduled power on/off: Yes
- System fans: 2 x (92 x 92 x 25 mm)
- AC input power voltage: 100 V to 240 V AC
- Power frequency: 50/60 Hz, single phase
