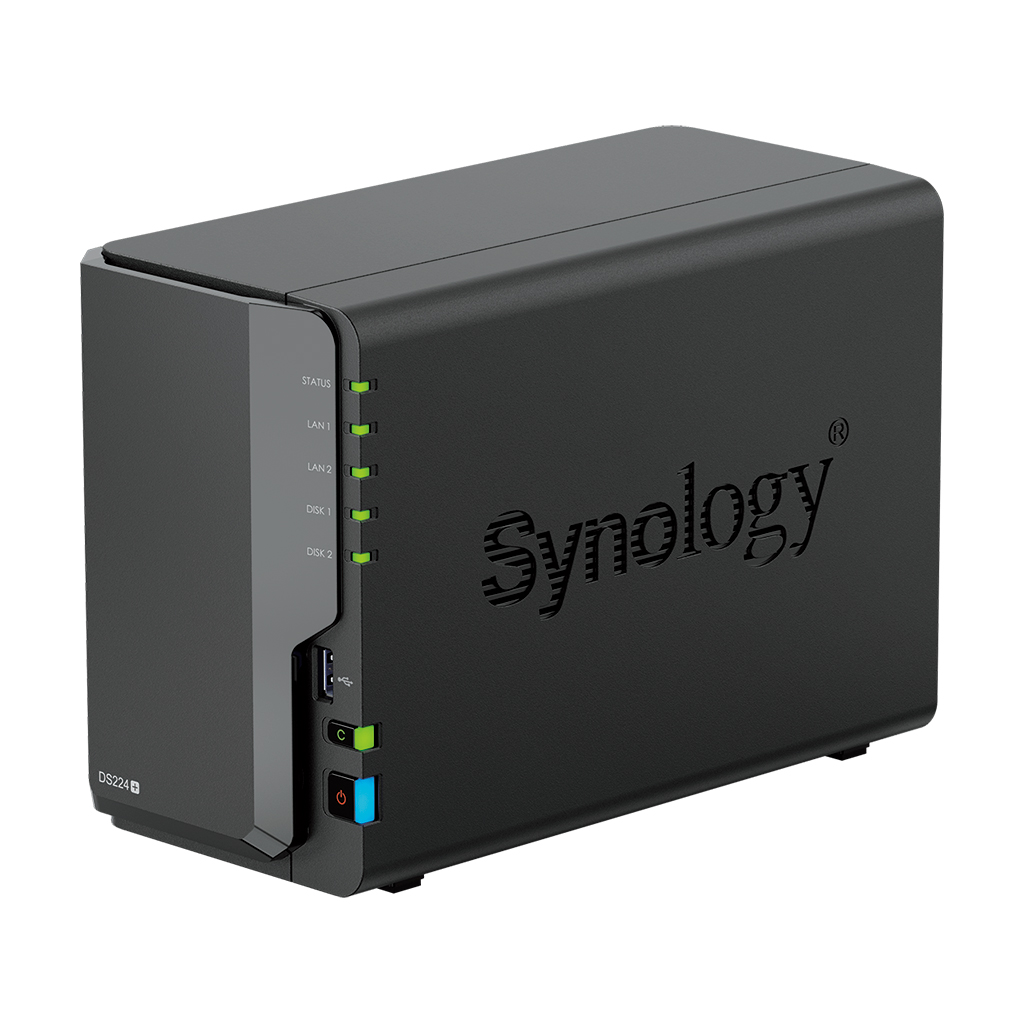

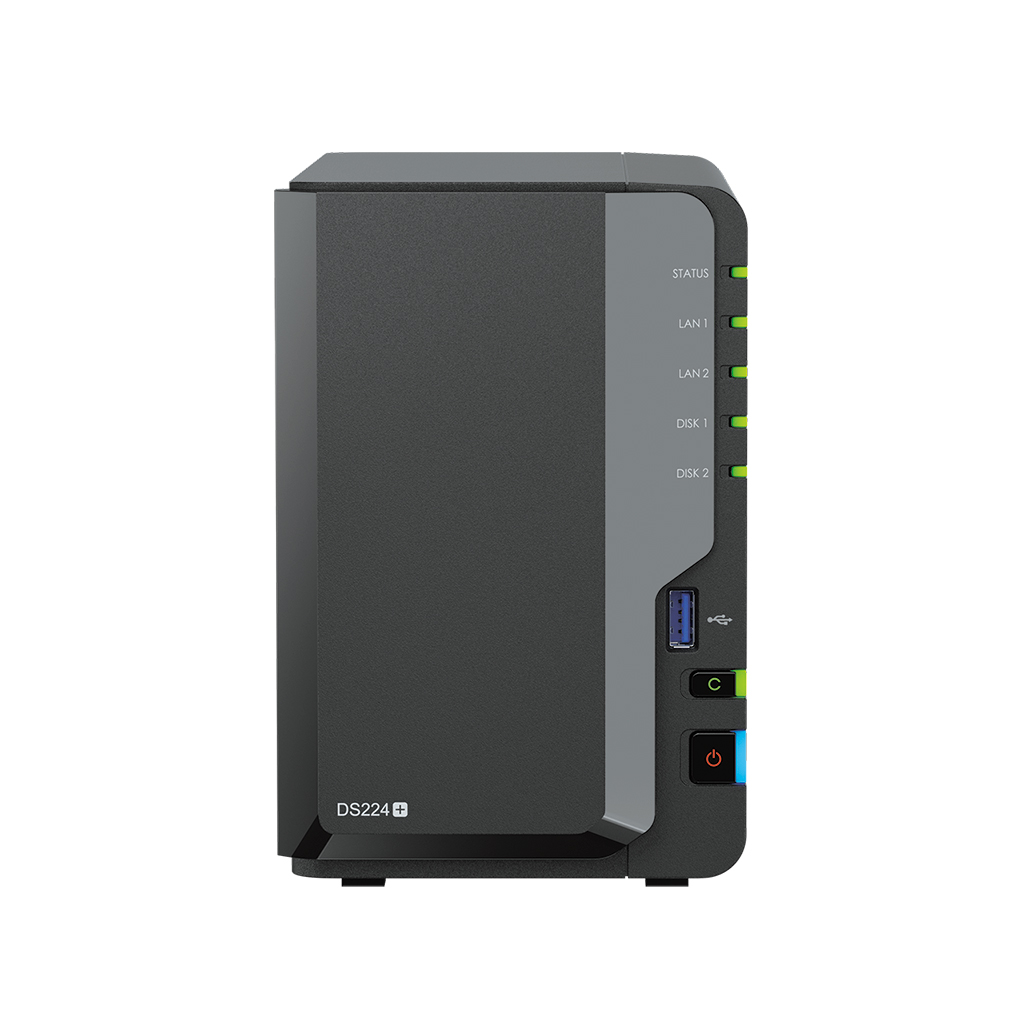

Synology DiskStation DS224+
The Synology DiskStation DS224+ is a compact 2-bay NAS solution designed to bring centralized data management to small organizations and teams. Synology DiskStation Manager (DSM) supports creating a private cloud to make working together better for everyone, with tools to manage, share, and protect files and photos, back up devices and data, and manage surveillance recordings.
• Centralized Data Storage Consolidate all your data for complete data ownership and multi-platform access
• Sharing and Syncing Across Systems Access, share, and sync data across different systems and devices using intuitive controls
• Powerful Backup and Restoration Back up and restore critical devices and data using a host of intuitive backup tools
• Built-in Data Management Tools Leverage built-in file and photo management, data protection, and video surveillance solutions
• CPU Intel® Celeron® J4125
• Memory 2 GB DDR4 (expandable up to 6 GB)
• Compatible drive types • 2 x 3.5" or 2.5" SATA SSD/HDD (drives not included) • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionalities and result in data loss and system instability5
• Hot swappable drives Yes
• External ports 2 x USB 3.2 Gen 1 ports
• Form factor Desktop
• Size (HxWxD) 165 x 108 x 232.2 mm
• Weight 1.3 kg LAN ports 2 x 1GbE RJ-45
• Wake on LAN/WAN Yes
• Scheduled power on/off Yes
• System fans 1 x (92 x 92 x 25 mm)
• AC input power voltage 100 V to 240 V AC
• Power frequency 50/60 Hz, single phase Operating environment
• Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 8% to 80% RH Storage environment
• Temperature: -20°C to 60°C (-5°F to 140°F) • Relative humidity: 5% to 95% RH Maximum operating altitude 5,000 m (16,400 ft)
