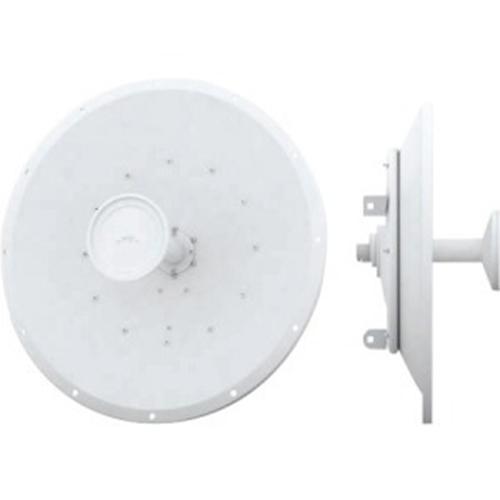

RocketDish Antenna RD‑5G34
RD‑5G34
airMAX® 2x2 PtP Bridge Dish Antenna
Pair the RocketDish™ with a Rocket™M BaseStation for Point to Point (PtP) bridging and network backhauls.
Product Highlights
• Powerful Performance for Long-Range Links
• Robust Design and Construction for Outdoor Use
• Seamless Integration with Rocket Radios
• Weatherproof Design
• Dimensions: 1050 x 1050 x 421 mm
• Weight: 13.5 kg (29.76 lb)
• Frequency Range: 4.9 - 5.8 GHz
• Gain: 4.9 GHz: 30 dBi
• HPOL Beamwidth: 3° (3 dB)
• VPOL Beamwidth: 3° (3 dB)
• F/B Ratio: 42 dB
• Max. VSWR: 1.4:1
• Polarization: Dual-Linear
• Cross-pol Isolation: 35 dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
