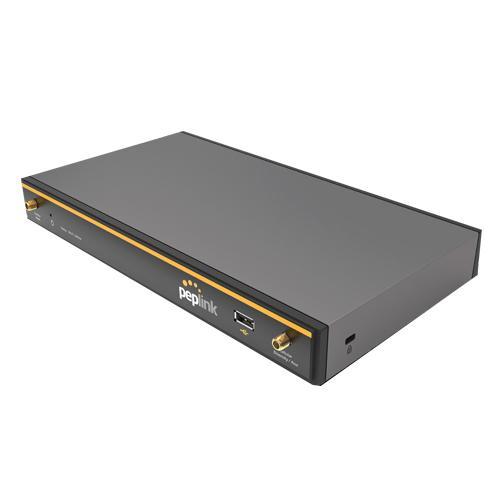

Peplink Balance 20X

Balance 20X

Futureproof SD-WAN Router for Small Businesses and Branches The Balance 20X has a FlexModule Mini slot which will support all kinds of WAN technology. So when it’s time to add a second LTE connection, the Balance 20X will be ready.

Internet Connections Supported: 2 LTE (1 embedded Cat 4 modem included; 1 additional modem can be added separately), 1 Wired WAN, 1 USB

Networks Supported for Embedded Modem: 4G LTE Band 2 (1900 MHz), Band 4 AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz)

WiFi Standard: 802.11ac wave 2/ac/a/n and 802.11b/g/n

WiFi Range: 250-300' through walls, much greater unobstructed (variable depending on interference from other electronics and physical interference such as walls and ceilings)

Ethernet ports: 4 GbE LAN + 1 GE WAN

Size: 1.3" x 10.3" x 6.3"

Technical Specification
Data Sheet
Inquire Now



  • WAN Interface
    • 1x GE
    • 1x USB
    • Embedded LTE Cat 4 Modem with Redundant SIM Slots
    • Expansion slot for additional modem (sold separately)
    • Downlink/Uplink Datarate: 150Mbps/50Mbps
  • LAN Interface
    • 4x GE Ethernet Port
  • WiFi Interface
    • Simultaneous 802.11ac wave 2/ac/a/n and 802.11b/g/n
  • Recommended Users
    • 1-60
  • Cellular and GPS Antenna Connector
    • 2x SMA Antenna Connectors
    • 1x SMA GPS Antenna Connector
    • 2x Wi-Fi Connectors
  • Power Input
    • DC Jack: 10V - 30V
  • Power Consumption
    • 28W (max.)
  • Dimensions
    • 1.3" x 10.3" x 6.3"
  • Weight
    • 1.74 lb
  • Enclosure
    • Indoor Metal
  • Operating Temperature
    • 14° – 113°F
    • -10° – 45°C
  • Humidity
    • 15% – 95% (non-condensing)
  • Certifications
    • FCC, CE, RoHS, E-Mark
    • EN61373: Rolling Stock
    • EN 61000: Electromagnetic Compatibility
