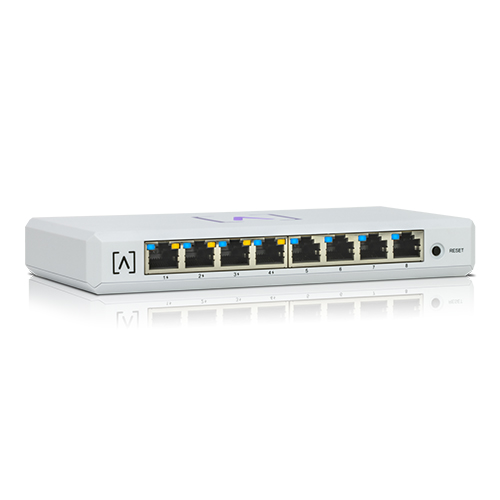

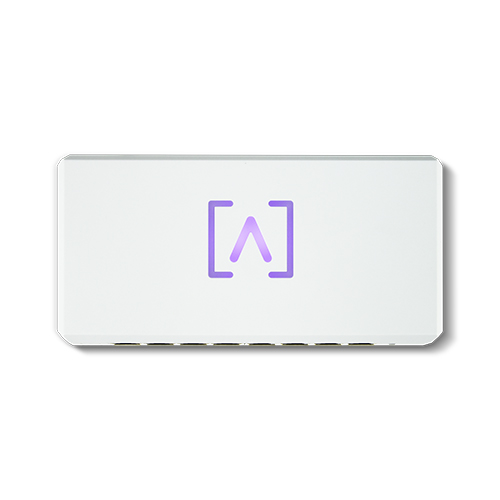

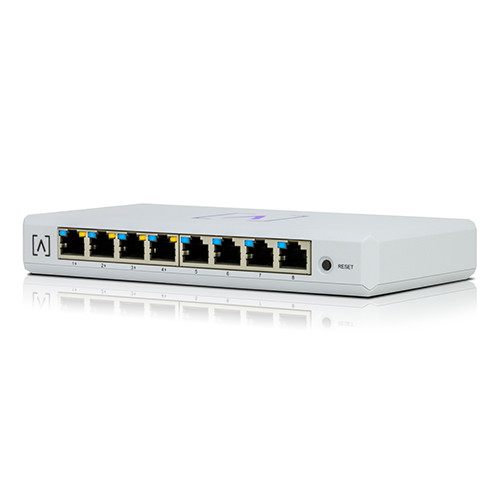

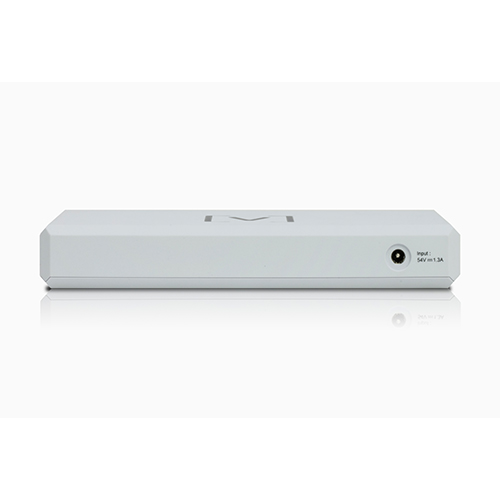

Alta Labs S8-POE Switch
The S8‑PoE is a compact switch with eight 10/100/1000 ports, four of which support PoE+. It can be placed on a desktop or mounted on a wall. All of the Alta Labs switches include Bluetooth functionality for seamless device setup.
• Power Over Ethernet
• Bluetooth Setup
• Mobile App
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication
• Network Loop Detection
• Site Manager
• Dimensions: 25.7 x 91 x 180 mm (1 x 3.6 x 7.1")
• Weight:.38 kg (.83 lbs)
• Material Type: Injection Molded Plastic
• Material Finish: Matte
• Color: White
• Interface ports: (8) 10/100/1000 Mbps
• SFP/SFP+: None
• Switching Capacity: 16 Gbps
• Non‑blocking Throughput: 8 Gbps
• Forwarding Rate: 11.9 Gbps
• PoE Budget/Max: 60 Watts
• PoE Supply: 30 Watts per Port
• Per Port PoE: (4) 802.3at PoE+
• Non‑PoE Ports: (4)
• Packet Buffe: 4.1 Mbit
• Mac Table Size: 8 K
• Energy Efficient Ethernet: Yes
• Management: Factory Reset Button
• Band: 2.4 GHz (For Bluetooth Setup)
• Bluetooth Version: BLE
• Total Power: 5 dBm EIRP
• Gain: 3 dBi
