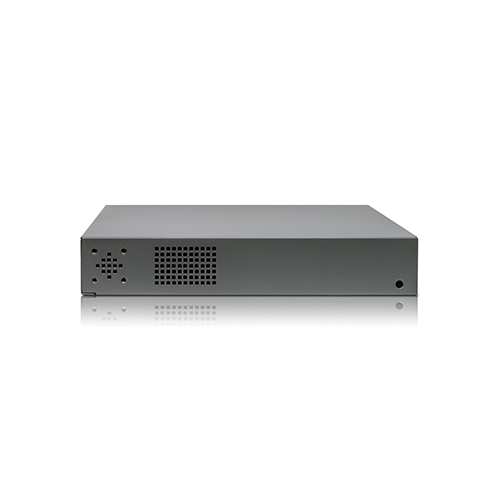

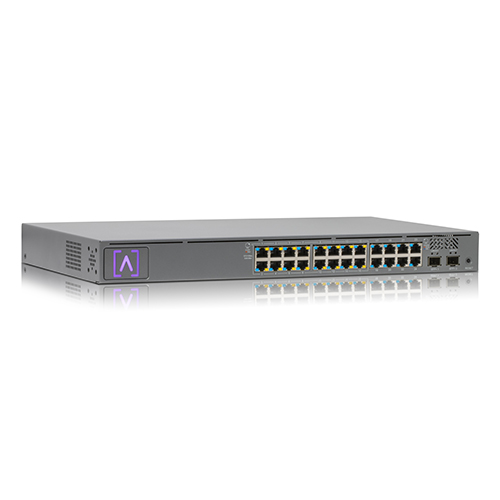

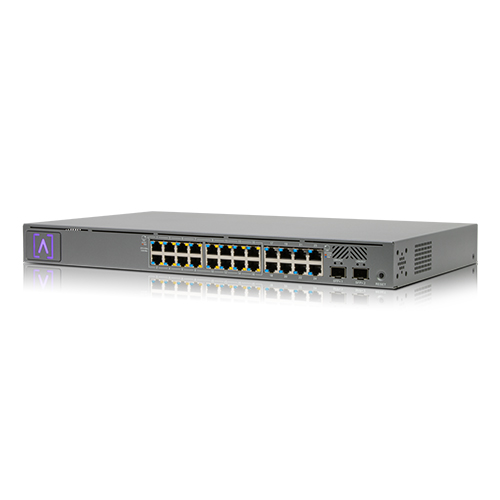

Alta Labs S24-POE Switch
The S24‑PoE is a rackmountable switch with twenty‑four 10/100/1000 ports, sixteen of which support PoE+. The S24‑PoE includes two SFP+ ports.
• Power Over Ethernet
• SFP/SFP+ High Performance Connectivity
• Bluetooth Setup
• Mobile App
• VLAN Stacking
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication
• Network Loop Detection
• Site Manager
• Dimensions: 44 x 254 x 441.5 mm (1.7 x 10 x 17.4")
• Weight: 3.6 kg (7.9 lbs)
• Material Type: SGCC
• Material Finish: Powder Coat ‑ Matte
• Color: Metallic Gray
• Interface ports: (24) 10/100/1000 Mbps
• SFP/SFP+: (2) SFP+
• Switching Capacity: 88 Gbps
• Non‑blocking Throughput: 44 Gbps
• Forwarding Rate: 65.5 Gbps
• PoE Budget/Max: 240 Watts
• PoE Supply: 30 Watts per Port
• Per Port PoE: (16) 802.3at PoE+
• Non‑PoE Ports: (10)
• Packet Buffer: 12 Mbit
• Mac Table Size: 16 K
• Energy Efficient Ethernet: Yes
• Management: Factory Reset Button
• Band: 2.4 GHz (For Bluetooth Setup)
• Bluetooth Version: BLE
• Total Power: 7 dBm EIRP
• Gain: 2 dBi
