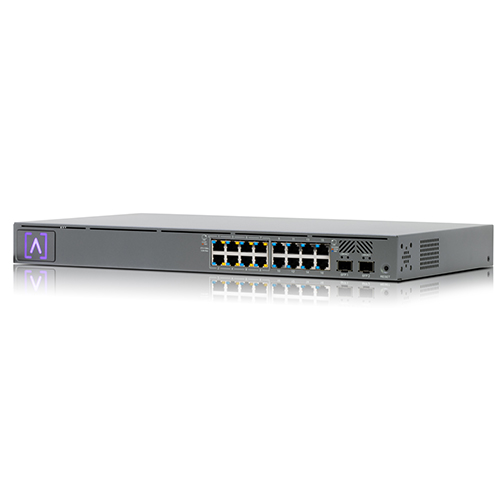

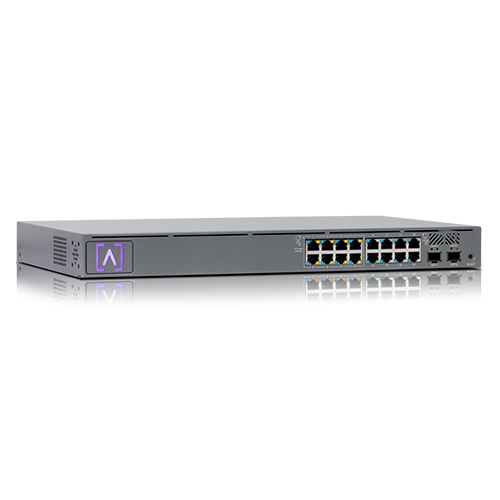

Alta Labs S16-POE Switch
The S16‑PoE is a rackmountable switch with sixteen 10/100/1000 ports, eight of which support PoE+. The S16‑PoE includes two SFP ports
• Power Over Ethernet
• SFP High Performance Connectivity
• Bluetooth Setup
• Mobile App
• Egress and Ingress Rate Limiting
• IGMP Snooping
• 802.1X Authentication
• Network Loop Detection
• Site Manager
• Dimensions: 44 x 254 x 441.5 mm (1.7 x 10 x 17.4")
• Weight: 3.6 kg (7.9 lbs)
• Material Type: SGCC
• Material Finish: Powder Coat ‑ Matte
• Color: Metallic Gray
• Interface ports: (16) 10/100/1000 Mbps
• SFP/SFP+: (2) SFP
• Switching Capacity: 36 Gbps
• Non‑blocking Throughput: 18 Gbps
• Forwarding Rate: 26.8 Gbps
• PoE Budget/Max: 120 Watts
• PoE Supply: 30 Watts per Port
• Per Port PoE: (8) 802.3at PoE+
• Non‑PoE Ports: (10)
• Packet Buffe: 4.1 Mbit
• Mac Table Size: 8 K
• Energy Efficient Ethernet: Yes
• Management: Factory Reset Button
• Band: 2.4 GHz (For Bluetooth Setup)
• Bluetooth Version: BLE
• Total Power: 7 dBm EIRP
• Gain: 2 dBi
