Alta Labs AP6 Pro Outdoor
The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment, designed to withstand harsh environments with an operating temperature of -40 to 70° C (-40 to 158° F).
• IP68 for Optimal Weatherproof Protection
• 5 GHz: 4x4, DL/UL MU-MIMO, 2.4 GHz 2x2 DL/UL MU-OFDMA
• WiFi 6 With WiFi 7 Benefits
• Superior Range and Performance
• Omnidirectional + Mesh Connectivity
• AltaPass™ Multi-Password Technology
• Scalable Cloud-Based Management
• Mobile App
• DPI Engine
• Hotspot Functionality
• On-The-Fly Changes and Scanning
• SSID Broadcasting Flexibility
• Dimensions: 210 x 150 x 90 mm (8.3 x 5.9 x 3.5")
• Weight: 0.9 kg (1.9 lbs)
• Mount Material: Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum

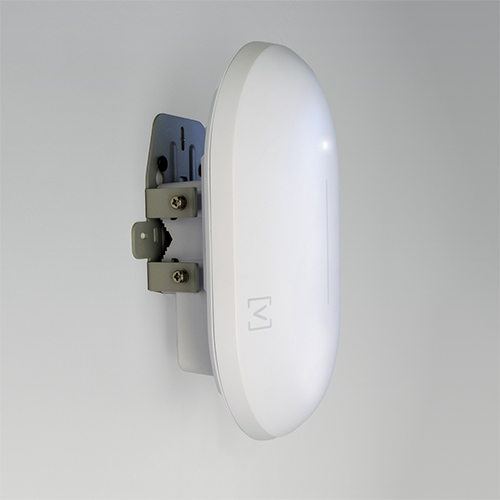

• Wall Mount Material: Galvanized Steel
• Weather Proofing:
• IP68 Network Interface: Ethernet, WiFi, Bluetooth
• Management Interface: (1) GbE RJ45 Port
• Button(s): Reset / Factory Reset
• LED: Blue, White
• Power Method: PoE+
• Power Supply: PoE+ enabled network switch 48V, 0.5A PoE adapter (optional)
• Supported Voltage Range: 42.5 - 57V DC
• Power Consumption: 25W Max, 7 - 15W Typical @ 23° C (73° F)
• Maximum Transmit Power: 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS
• MIMO
• 5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA
• 2.4 GHz: 2 x 2. DL/UL MU-OFDMA
• Explicit TX beam-forming
• Throughput Rate: 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps
• Antenna Gain: 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi

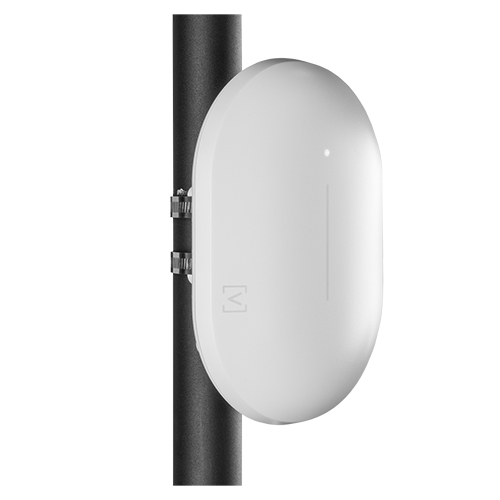

• Mounting: Pole mount, wall mount
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
