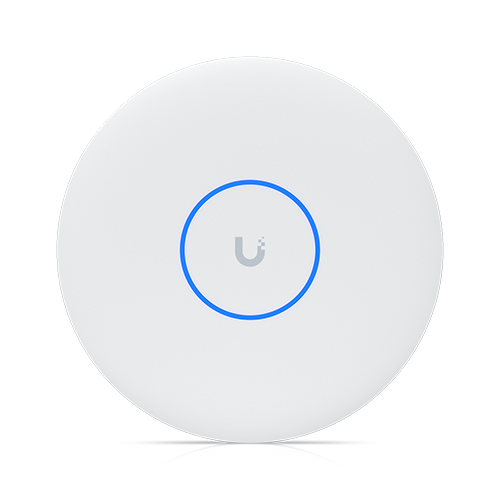

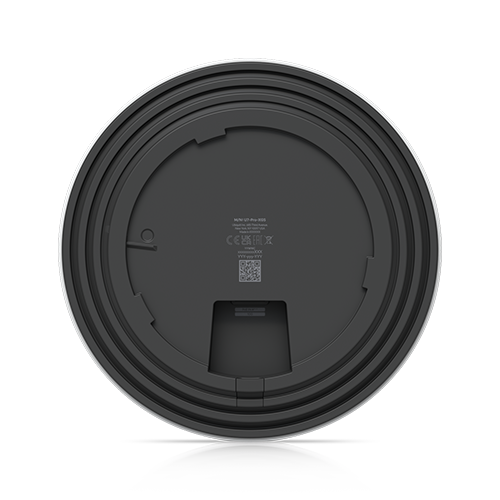

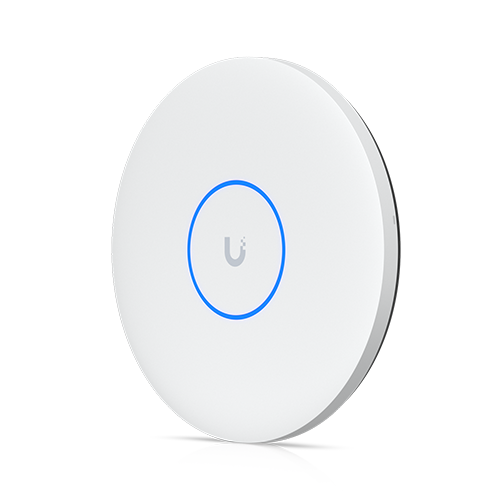

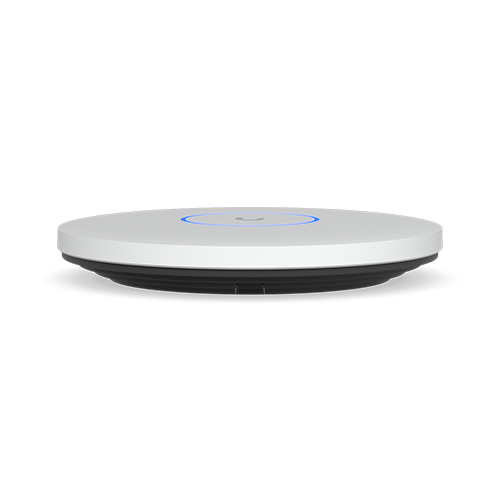

Ubiquiti UniFi WiFi U7 Pro XGS

U7-Pro-XGS

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Technical Specification
Data Sheet
Inquire Now

Dimensions
Ø215 x 32.5 mm (Ø8.5 x 1.3")
WiFi Standard
WiFi 7

Spatial Streams
8
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
500+
Uplink
10 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE++

Performance
MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate

6 GHz
5.8 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain

6 GHz
6 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power

6 GHz
24 dBm
5 GHz
29 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates

802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Zero-Wait DFS
✓
Advanced Radio Management
✓

Real-Time Spectral Analysis


✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal

Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
29W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
800 g (1.8 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs

System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 05123-25-08356
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz

Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements

UniFi Network
Version 9.0.114 and later (U7 Pro XGS - White) Version 9.1.120 and later (U7 Pro XGS - Black)
