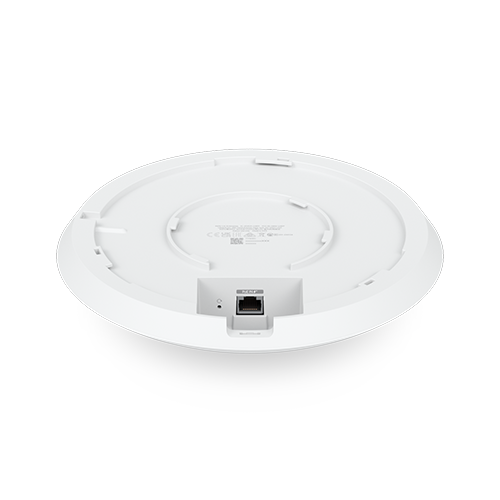

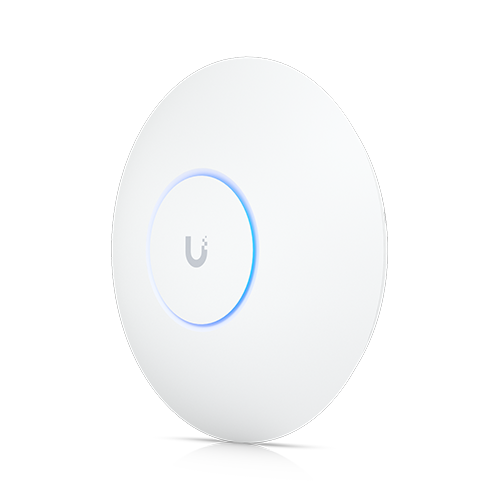

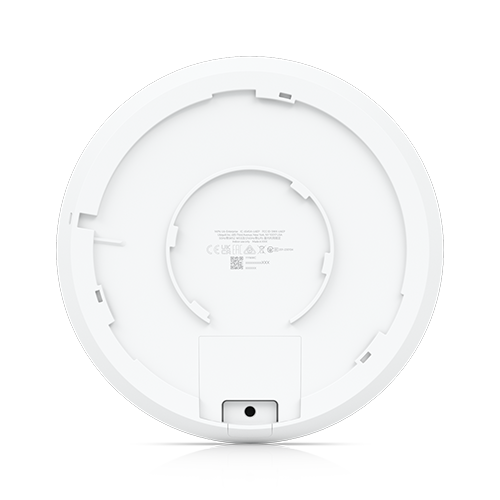

Ubiquiti UniFi WiFi U6 Enterprise

U6-Enterprise

Ceiling-mounted WiFi 6E AP with 10 spatial streams and 6 GHz support to provide seamless, multi-band coverage within high client density environments.

Technical Specification
Data Sheet
Inquire Now

Dimensions
Ø220 x 48 mm (Ø8.7 x 1.9")
WiFi Standard
WiFi 6E

Spatial Streams
10
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
600+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Pro Mount Included)
Power Method
PoE+

Performance
MIMO

6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate

6 GHz
4.8 Gbps (BW160)
5 GHz
4.8 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain

6 GHz
6 dBi
5 GHz
5.3 dBi
2.4 GHz
3.2 dBi
Max. TX Power

6 GHz
26 dBm
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates

802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal

Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
22W
Supported Voltage Range
44—57V DC
Networking Interface
(1) 1/2.5 GbE RJ45 port
Weight
Device: 960 g (2.1 lb) With mount: 1.1 kg (2.4 lb)
Management
Ethernet Bluetooth
Enclosure Material
Polycarbonate, aluminum
Mount Material
Stainless steel (SUS304)
LEDs

System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 11933-22-08356
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 6100 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz (Depends on the regulatory region)
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements

UniFi Network
Version 6.0.45 and later
