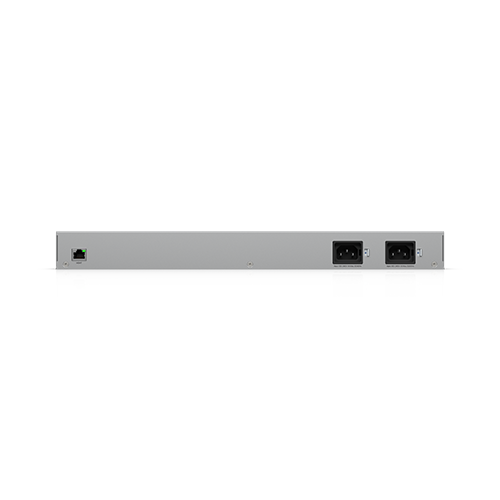

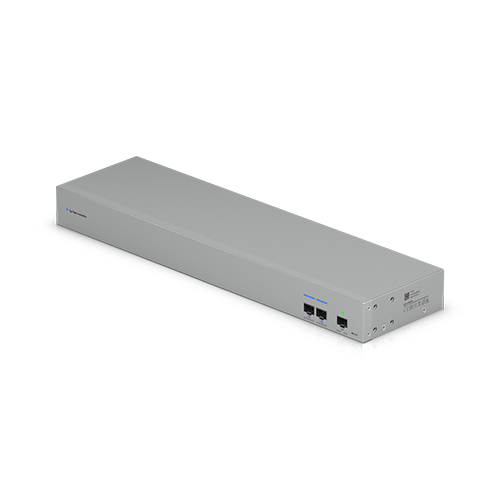

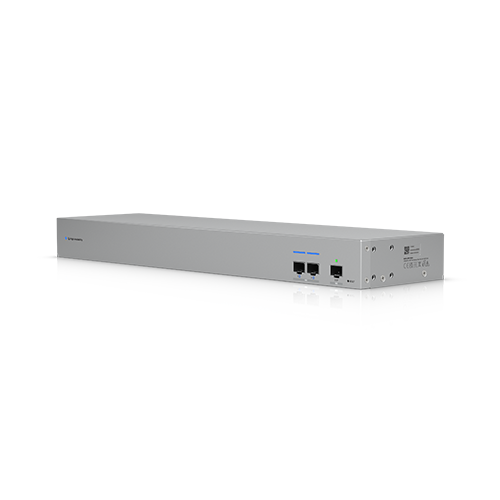

Ubiquiti UniFi WAN Switch

USW-WAN

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Technical Specification
Data Sheet
Inquire Now

Dimensions
442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7")
Port Layout

1 GbE RJ45
1 (1G/100M/10M)
10G SFP+
3 (10G/1G)
Redundancy
(2) AC inputs
Form Factor
Rack mount (1U)

Performance
Switching Capacity
20 Gbps
Total Non-Blocking Throughput
10 Gbps
Forwarding Rate
15 Mpps

Hardware
Max. Power Consumption
13W
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
(2) AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet
Weight
Without mounting brackets: 2.2 kg (4.85 lb) With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
ESD Protection
Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs

Ethernet
✓
SFP+
✓
System
✓
Certifications
CE, FCC, IC, Anatel: 03715-25-08356
NDAA Compliant
✓

Software
Application Requirements

UniFi Network
Version 9.1.119 and later
