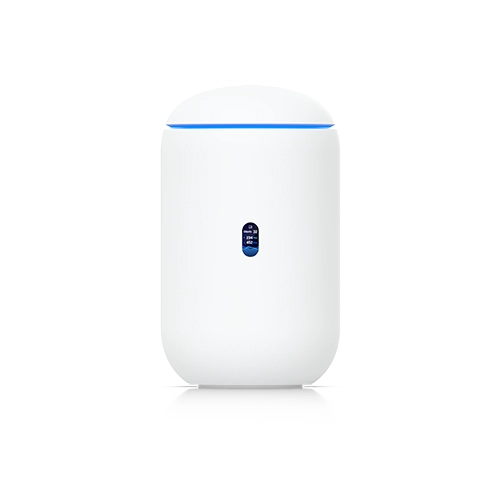

Ubiquiti UniFi UDR 7
UDR7
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
- Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3")
- Network: ✓
- Protect: ✓
- Access: ✓
- Talk: ✓
- Connect: ✓
- Managed UniFi Devices: 30+
- Managed Cameras: (5) HD(2) 2K(1) 4K
- Simultaneous Users Connected: 300+

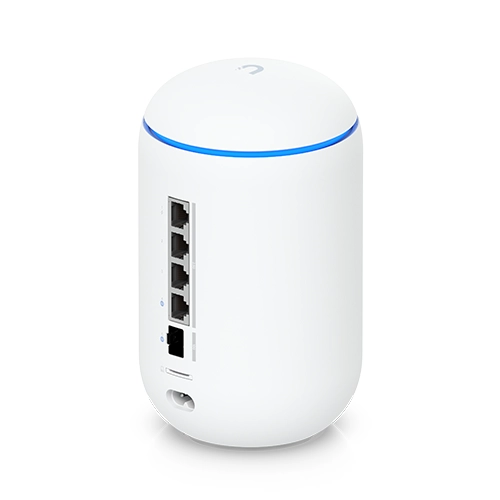

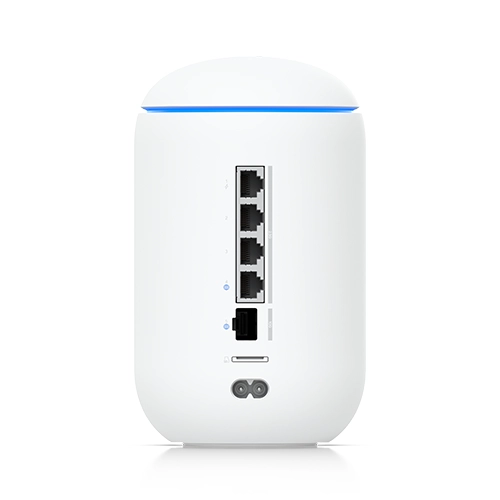

- Default WAN Ports: (1) 10G SFP+(1) 2.5 GbE RJ45
- LAN Ports: (3) 2.5 GbE RJ45 including (1) PoE
- IDS/IPS Throughput: 2.3 Gbps
- Form Factor: Compact desktop
- Security Stateful Firewall: ✓
- Application-Aware Layer 7 Firewall: ✓
- DPI & Traffic Identification: ✓
- Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
- Content Filtering: ✓
- Intrusion Prevention (IPS/IDS): ✓
- Ad Blocking: ✓
- IDS/IPS Signatures: 20,000+ with CyberSecure
- VLAN/Subnet-based Traffic Segmentation: ✓
- WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- 6 GHz: 5.7 Gbps
- 5 GHz: 4.3 Gbps
- 2.4 GHz: 688 Mbps
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 6 GHz: 6 dBi
- 5 GHz: 7 dBi
- 2.4 GHz: 5 dBi
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Max. BSSIDs: 4 per Radio
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
