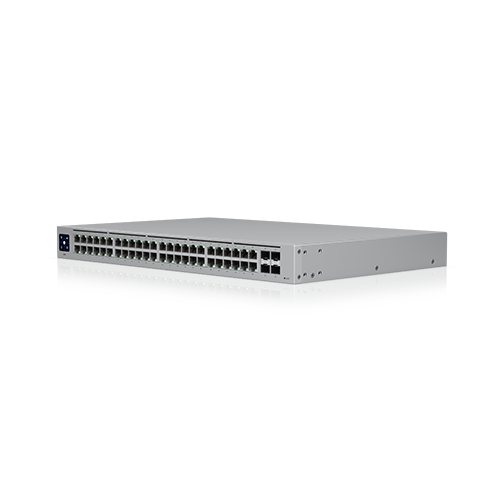

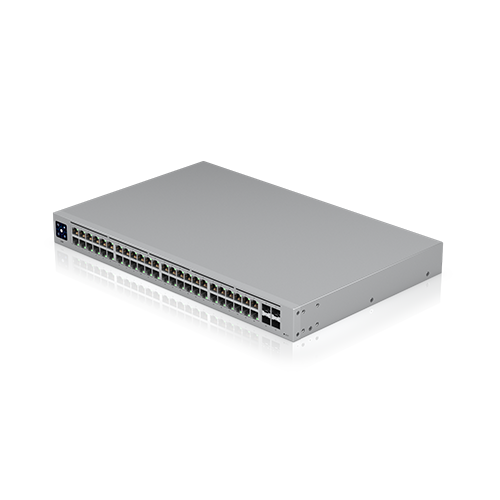

Ubiquiti UniFi Switch Standard 48
The U SW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP
ports, providing 1 Gigabit links to your devices and fiber uplink options to your enterprise network
• Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")
• Weight Without Mount: 3.9 kg (8.6 lb)
• With Mount: 3.99 kg (8.8 lb)
• Enclosure Characteristics SGCC Steel
• Total Non-Blocking Line Rate 52 Gbps
• Max. Power Consumption 40W
• Forwarding Rate 77.376 Mpps
• Power Method Universal AC Input: 100-240VAC, 50/60 Hz
• Power Supply AC/DC, Internal, 60W
• Supported Voltage Range 100 - 240VAC
• Networking Interfaces (48) 10/100/1000 Mbps Ethernet RJ45 Ports
(• 4) 1 Gbps SFP Ports
• Management Interface Ethernet In-Band
• Modes SMB Layer 2 Gigabit Ethernet Switch
• Operating Temperature -15 to 40° C (5 to 104° F)
• Operating Humidity 10 - 90% Noncondensing
