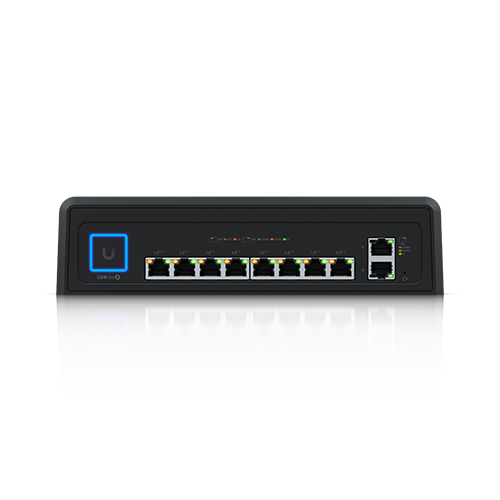

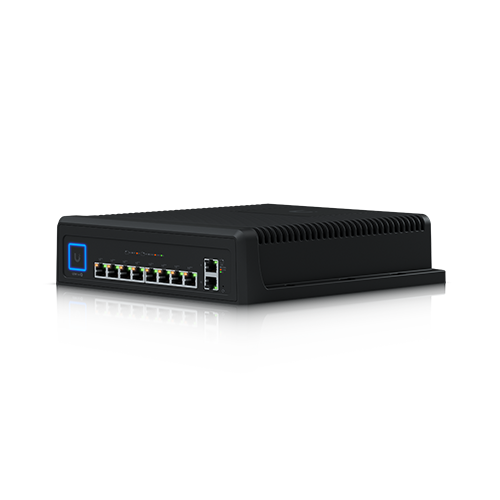

Ubiquiti UniFi Switch Industrial

USW-Industrial

An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.

Technical Specification
Data Sheet
Inquire Now

Dimensions
252.5 x 238 x 60 mm (9.9 x 9.4 x 2.4")
Port Layout

1 GbE RJ45
10 (8 PoE++) (1G/100M/10M)
Max. PoE Output
Up to PoE++
Total PoE Availability
430W
Form Factor
Compact desktop, wall

Performance
Switching Capacity
20 Gbps
Total Non-Blocking Throughput
10 Gbps
Forwarding Rate
15 Mpps
Supported VLANs
256
MAC Address Table Size
4,000

Layer 2 Features
STP & RSTP
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
PoE Ports

PoE++
8
Max. PoE Wattage per Port by PSE

PoE++
64W
Max. Power Consumption
20W (Excluding PoE Output) 450W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 450W
Supported Voltage Range
100—240V AC
Management
Ethernet
Heat Dissipation
68.2 BTU/hr (Excluding PoE Output)
Weight
3.9 kg (8.5 lb)
Enclosure Material
Die-cast aluminum with black powder coated finish
ESD Protection
Air: ± 24kV, contact: ± 24kV
Ambient Operating Temperature
Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

Software
Application Requirements

UniFi Network
Version 7.2.94 and later
