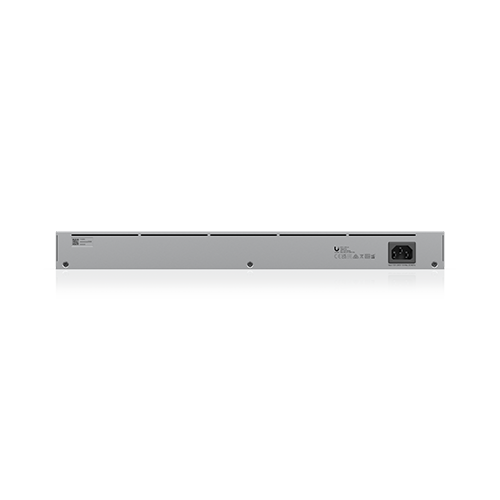

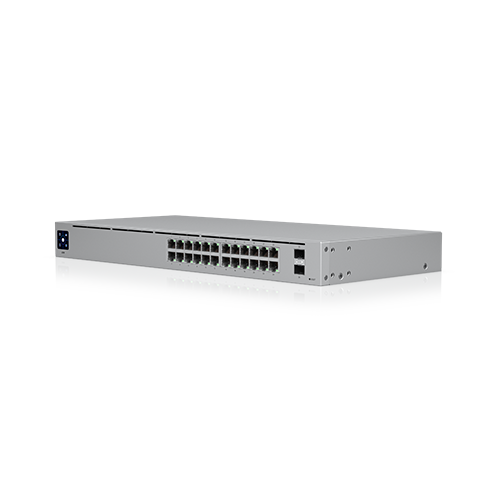

Ubiquiti UniFi Switch 24

USW-24

A 24-port, Layer 2 switch with a silent, fanless cooling system.

Technical Specification
Data Sheet
Inquire Now

Dimensions
442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Port Layout

1 GbE RJ45
24 (1G/100M/10M)
1G SFP
2 (1G)
Form Factor
Rack mount (1U)

Performance
Switching Capacity
52 Gbps
Total Non-Blocking Throughput
26 Gbps
Forwarding Rate
39 Mpps
Supported VLANs
1,000
MAC Address Table Size
8,000
Packet Buffer Size
0.5 MB
Access Lists

IPv4
128
MAC
128

Layer 2 Features
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
Virtual Network Override
✓

Hardware
Max. Power Consumption
25W
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation
85.3 BTU/hr
Weight
Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 45° C (23 to 113° F)
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 17193-20-08356

Software
Application Requirements

UniFi Network
Version 7.2.94 and later
