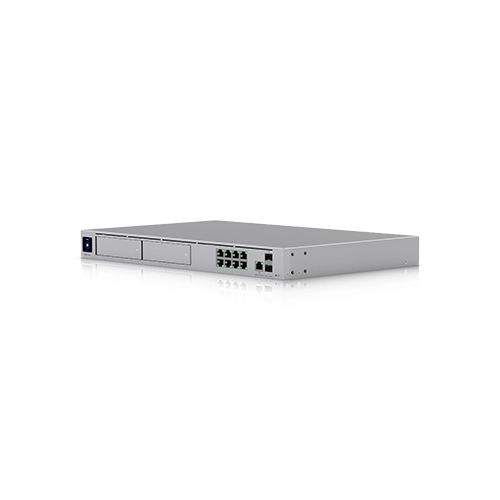

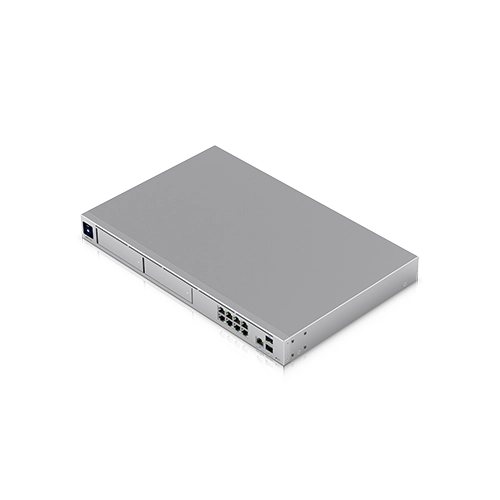

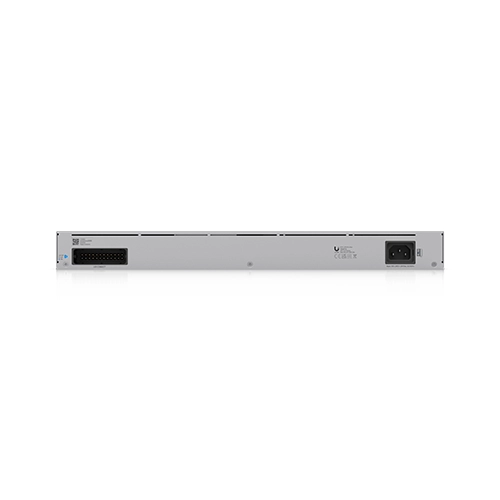

Ubiquiti UniFi Dream Machine Pro Max

UDM-Pro-Max

10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.

Technical Specification
Data Sheet
Inquire Now
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
UniFi Application Suite


Network


✓

Protect


✓

Access


✓

Talk


✓

Connect


✓
Managed UniFi Devices
200+
Managed Cameras
(50) HD (25) 2K (15) 4K

Managed Access Hubs


150
Simultaneous Users Connected
2,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45
Port Layout

1 GbE RJ45
8 (1G/100M/10M)
2.5 GbE RJ45
1 (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover DC Power Backup


Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN

Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server

Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client

OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
LACP Port Aggregation
✓
Dynamic Routing

OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓
Virtual Network Override
✓
All Traffic Flows
✓

Hardware
NVR Storage
(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience
Max. Power Consumption
60W
Power Method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Heat Dissipation
205 BTU/hr
Processor
Quad-core ARM® Cortex®-A57 at 2.0 GHz
System Memory
8 GB
On-board Storage
32 GB eMMC 128 GB SSD (Integrated)
Weight
4.7 kg (10.4 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet Bluetooth
LEDs

Ethernet
✓
SFP+
✓
RPS
✓
PSU
✓
HDD
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel: 06369-24-08356, SRRC
