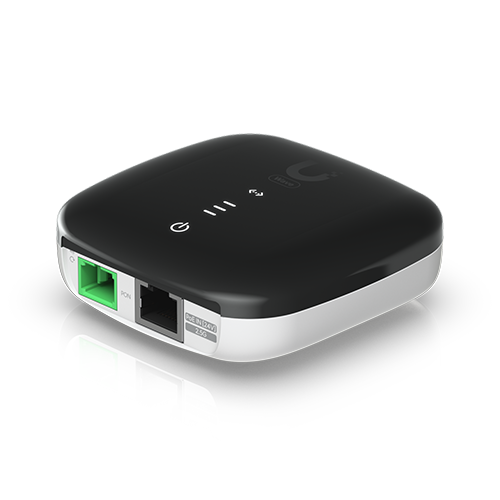

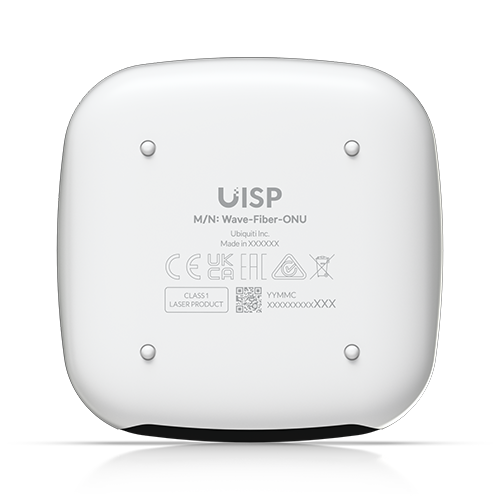

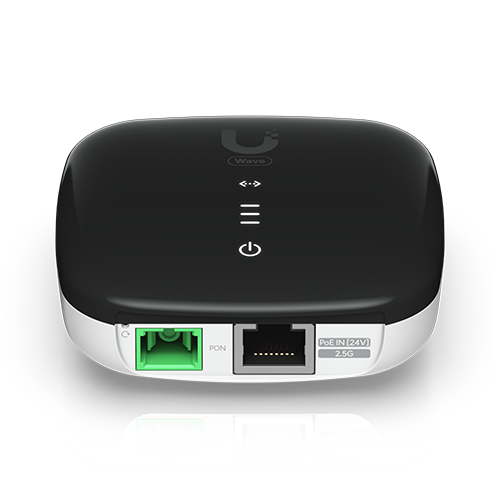

Ubiquiti UISP WaveFiber ONU

Dimensions

76.5 x 76.5 x 26.4 mm (3 x 3 x 1")

Weight

78 g (2.8 oz)

Enclosure material

Polycarbonate

Hardware

Networking interface

(1) SC/APC, ITU-G.984 GPON WAN port
(1) 1/2.5 GbE RJ45 LAN port

Management interface

Ethernet in-band
PON

Power method

PoE, 0.3A

Power supply

24V passive PoE 2-pair (4, 5+; 7, 8-)

Supported voltage range

20–28V DC

Max. power consumption

5W

Total non-blocking line rate
Downstream
Upstream

2.488 Gbps
1.244 Gbps

Normal range of optical module
TX
RX

1.5 to 5 dBm
-8 to -28 dBm

Mounting

Desktop, wall

Button

(1) Factory reset

Ambient operating temperature

-15 to 45° C (5 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

FCC, IC, CE

LEDs

PON status

(3) signal LEDs
All-OFF: bootup
1x red: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x red + 2x white: signal too strong (>= -8 db)
3x red: no signal
LEDs alternate between red and a signal strength indicator: No authority

Ethernet

Steady white: link up
Blinking white: activity
OFF: link down

Power

White: ON

Software

Mode

ONU/ONT layer 2/3 Ethernet switch

Services

Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

Utilities

Dashboard, monitoring, alarms, and logs

Security

GEM Port Encryption

Other

Remote reset, remote reboot, remote firmware upgrade, VLAN support

Fiber

Operating wavelength
TX
RX

1310 nm
1490 nm

Line code

Scrambled NRZ

Optical interface nominal bit rate
Downstream
Upstream

2488.32 Mbit/s
1244.16 Mbit/s

Physical reach

20 km
