Ubiquiti UISP Wave MLO5

Wave-MLO5

High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Technical Specification
Data Sheet
Inquire Now

Dimensions
249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
Weight
575 g (1.3 lb)
Enclosure Material
Aluminum alloy, UV-resistant polycarbonate
Mount Material
Strap: stainless steel Universal bracket: UV-resistant polycarbonate

Mounting
Pole Mount
Pole Mount Diameter
1—2" (25.4—50.8 mm)
Weatherproofing
IPX6

Hardware
Processor
Quad-core IPQ5322 at 1.5 GHz
Memory
DDR4 1 GB

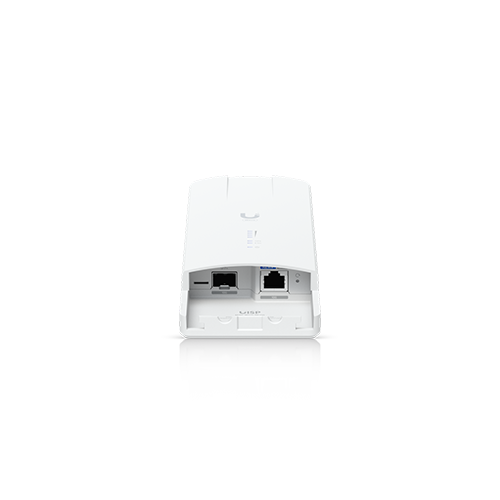

Networking Interface
(1) 10 GbE RJ45 port (1) 10G SFP+ port
Max. Power Consumption
20W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC 22–27V DC
Power Supply
54V DC, 0.56A, 10 GbE PoE adapter (Included)
MIMO

5 GHz
(2) 2 x 2
Max. TX Power

5 GHz
24 dBm

GPS
✓

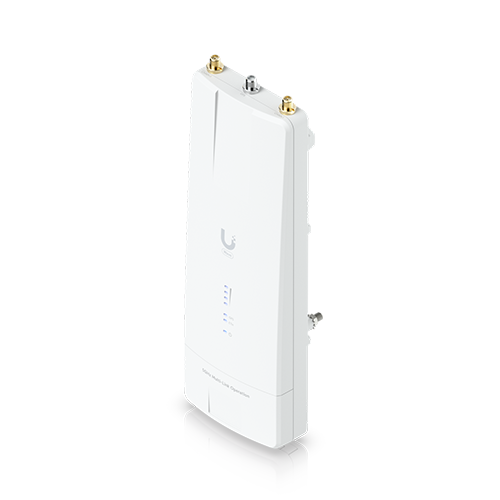

RF Connections
(2) RP-SMA (Waterproof) (1) GPS (Waterproof)
Buttons
(1) Factory-reset

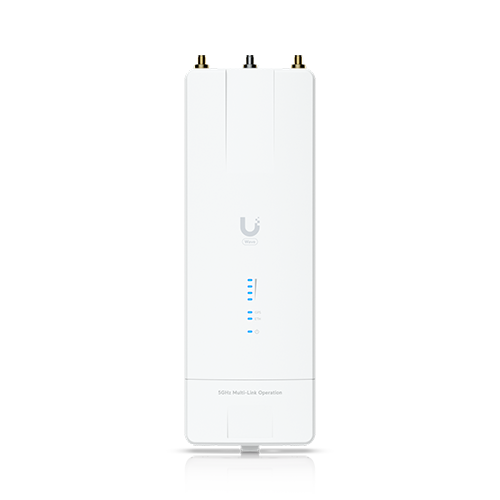

LEDs

Power
(1) Blue
Ethernet
(1) Blue
GPS
(1) Blue
Signal Strength
(4) Blue
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE

Software
Operating Modes
PtP
Services

UISP
✓
Ping Watchdog
✓
NTP Client
✓
Utilities

Antenna Alignment
✓
Ping
✓
Site Survey
✓
Speed Test
✓
Traceroute
✓
Discovery Utility
✓
Network
Bridge Mode

System
Total Throughput
5+ Gbps
Max. Range
100 km (62.1 mi)

Encryption
WPA3-PSK (AES)

Radio Frequency
Operating Frequency

Worldwide
5180 – 5320 MHz 5500 – 5700 MHz 5745 – 5825 MHz

Channel Bandwidth
Radio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz
Modulation
BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)
