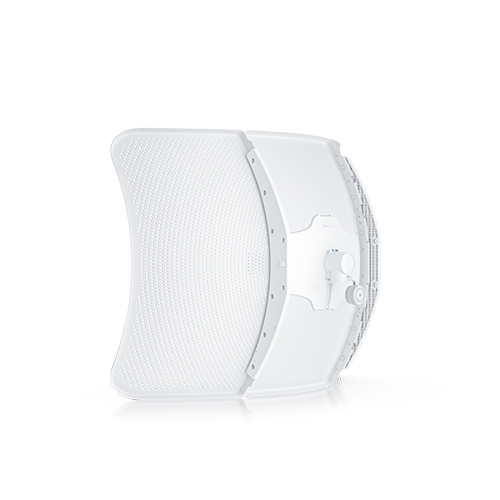

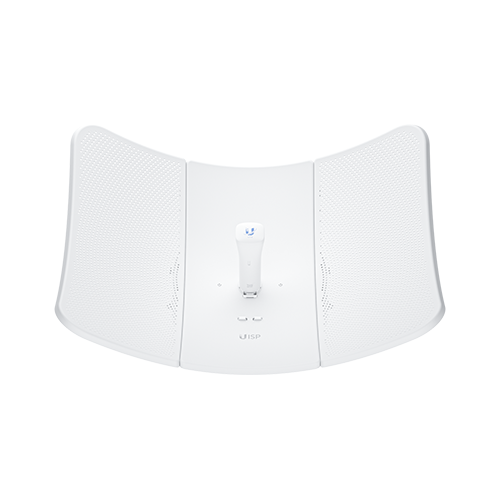

Ubiquiti UISP LTU Extreme-Range
5 GHz LTU client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.
| 747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
Weight | 3.2 kg (7.1 lb) |
Enclosure material | Aluminum alloy, UV-stabilized polycarbonate |
Mount material | UV-stabilized polycarbonate |
Mount | Integrated pole mount (included) |
Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
Weatherproofing | IPX6 |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
Supported voltage range | 22—27V DC |
Max. power consumption | 9W |
RF connections | Internal |
LEDs | Power/Ethernet |
Button | Factory reset |
Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
Ambient operating humidity | 5 to 95% non-condensing |
Certifications | FCC, IC, CE |
NDAA Compliant | Yes |
Software | |
Modes | PtMP CPE, PtP* |
Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
Auto distance adjustment | Yes |
Auto power adjustment | Yes |
Network | Bridge/Router* mode |
Security | Yes |
Statical reporting | Yes |
Management interface | Bluetooth management for easy setup over UISP App |
Minimum software requirements | Any modern web browser |
System | |
Maximum throughput | 900+ Mbps* |
Encryption | WPA2-PSK (AES) |
Uplink/downlink ratio | 25/75, 33/67, 50/50 |
RF | |
Operating frequency* | 5.15 to 5.95 GHz |
Max. conducted TX power | 25 dBm |
Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* |
Antenna gain | 29 dBi |
Isolation | 20 dB |
Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° |
Electrical downtilt | 0° |
