Ubiquiti UISP Fiber WiFi

Dimensions

126.3 x 126.1 x 31.7 mm (5 x 5 x 1.3")

Weight

190 g (6.7 oz)

Enclosure material

UV-stabilized polycarbonate (PC110U)

Hardware

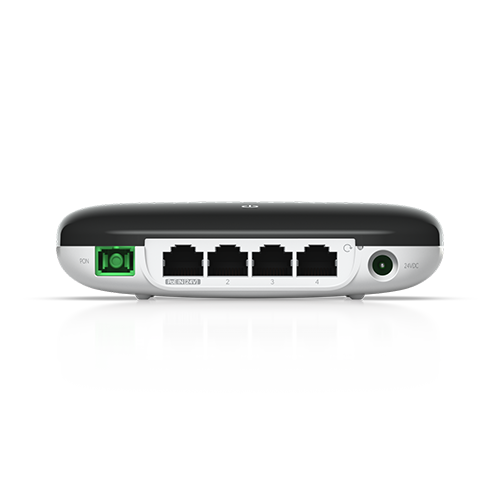

Networking interface

(1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports

WiFi 802.11n

Management interface

Ethernet In-Band
PON

Power method

DC Jack, 24V DC
24V Passive PoE (Pins 4, 5+; 7, 8-)

Power supply

Universal AC/DC adapter, 100—240V AC, 50/60 Hz, 24V/0.5A

Supported voltage range

10–30V DC (passive PoE)
5V DC (adapter)

Max. power consumption

7W

Total non-blocking line rate
Downstream
Upstream

2.488 Gbps
1.244 Gbps

Normal range of optical module
TX
RX

1.5 to 5 dBm
-8 to -28 dBm

Max. WiFi TX power
2.4 GHz

20 dBm

MIMO
2.4 GHz

2 x 2

Max. WiFi radio rate
2.4 GHz

300 Mbps

Antenna gain
2.4 GHz

1 dBi

Button

(1) Factory reset

Ambient operating temperature

-10 to 45° C (14 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

FCC, IC, CE

NDAA Compliant

Yes

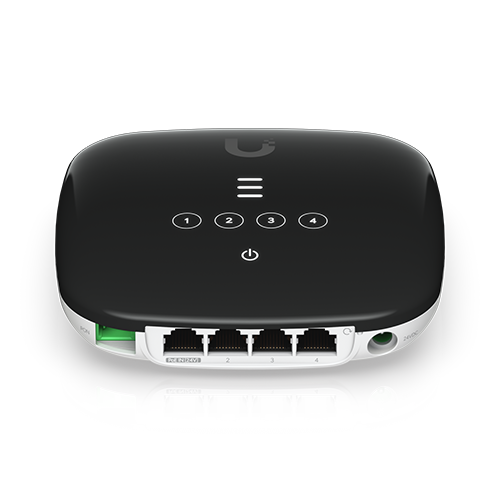

LEDs

PON status

(3) Signal LEDs
All-OFF: bootup
1x red: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x red + 2x white: signal too strong (>= -8 db)
3x red: no signal
LEDs alternate between 3x red and a signal strength indicator: No authority

Ethernet

Steady white: link up
Blinking white: activity
OFF: link down

Power

White: ON

Software

Mode

ONU/ONT layer 2/3 Ethernet switch

Services

Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

Utilities

Dashboard, monitoring, alarms, and logs

Other

Remote reset, remote reboot, remote firmware upgrade, VLAN support

Security

GEM Port Encryption

Ubiquiti specific features

UISP Mobile App

WiFi standards

802.11 b/g/n

Wireless security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)

Fiber

Operating wavelength
TX
RX

1310 nm
1490 nm

Line code

Scrambled NRZ

Optical interface nominal bit rate
Downstream
Upstream

2488.32 Mbit/s
1244.16 Mbit/s

Physical reach

20 km

Supported Data Rates

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
