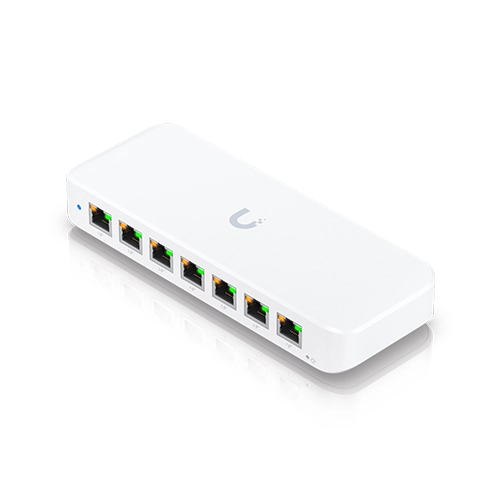

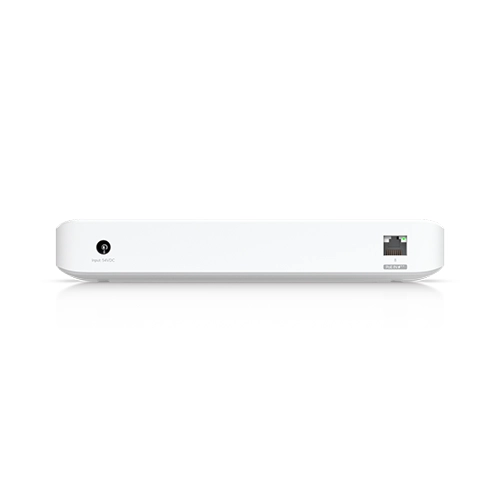

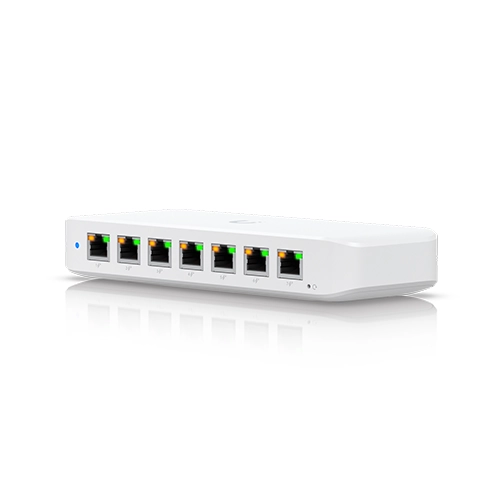

Ubiquiti USW Ultra

• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3")
• Port Layout: 1 GbE RJ45 | 8 (7 PoE+; 1 PoE++ input) | (1G/100M/10M)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: PoE++ input: 42W
• PoE+ input: 16W: 60W PoE adapter input: 42W
• 60W AC adapter input: 52W
• 210W AC adapter input: 202
• Form Factor: Compact desktop, wall, magnetic

Performance
• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000

• Layer 2 Features: STP & RSTP: ✓
• Egress Rate Limit: ✓
• Flow Control: ✓
• Storm Control: ✓
• Multicast & Broadcast Rate Limiting: ✓
• Port Isolation: ✓
• Port Mirroring: ✓
• Jumbo Frames: ✓
• Loop Protection: ✓

Hardware
• PoE Ports
• PoE+: 7
• PoE++: 1
• Max. PoE Wattage per Port by PSE
• PoE+: 30W
• Max. Power Consumption: 9W (Excluding PoE Output) with PoE input
• 8W (Excluding PoE Output) with adapter input
• 210W (Including PoE Output) with 210W AC adapter input
• Power Method: (1) AC/DC adapter (Excluded) | (1) PoE++
• Power Input Method
• DC Input: PoE
• Supported Voltage Range: 50—57V DC/PoE
• Management: Ethernet
• Heat Dissipation (Excluding PoE Output): 30.708 BTU/hr: 27.296 BTU/hr
• Weight
• Device: 320 g (11.3 oz)
• Wall mount: 45 g (1.6 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Ambient Operating Temperature
• PoE++ input: -30 to 60° C (-22 to 140° F)
• 60W AC adapter input: -20 to 45° C (-4 to 113° F)
• 210W AC adapter input: -20 to 60° C (-4 to 140° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel
