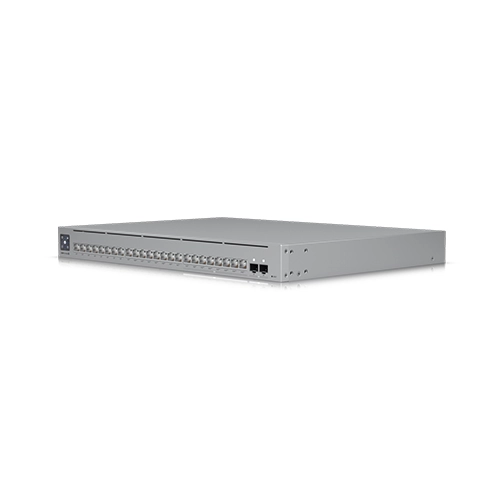

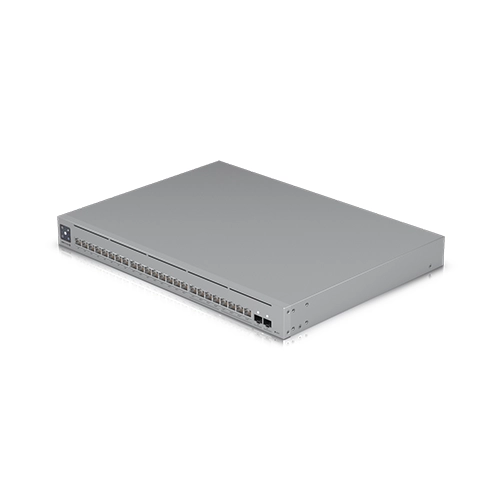

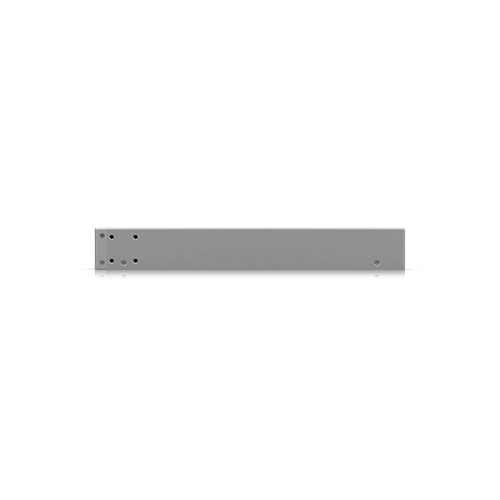

Ubiquiti Pro Max 24 PoE
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
•Dimensions: 442 x 325 x 44 mm | (17.4 x 12.8 x 1.7")
• Port Layout: 1 GbE RJ45 | 16 (8 PoE+; 8 PoE++) | (1G/100M/10M)
• 2.5 GbE RJ45 8 (All PoE++) (2.5G/1G/100M/10M) 10G SFP+ 2 (10G/1G)
• Max. PoE Output Up to PoE++
• Total PoE Availability 400W
• Redundancy: DC Power Backup
• Layer 3: ✓
• Form Factor: Rack mount (1U)
• Etherlighting™: ✓
Performance
• Switching Capacity: 112 Gbps
• Total Non-Blocking Throughput: 56 Gbps
• Forwarding Rate: 83 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• L3 Table Size: ARP Entries: 6,000
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 128
• MAC: 128
Layer 3 Features
• DHCP Server (Local Networks): ✓
• DHCP Relay: ✓
• Inter-VLAN Routing (Local Networks): ✓
• Static Routing (Local Networks): ✓
Layer 2 Features
• LACP Port Aggregation: ✓
• STP & RSTP: ✓
• QoS (DSCP): ✓
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
• IGMP Snooping: ✓
• 802.1X Control: ✓
• MAC-Based ACLs & Device Isolation: ✓
• DHCP Snooping & Guarding: ✓
• Egress Rate Limit: ✓
• Flow Control: ✓
• Storm Control: ✓
• Multicast & Broadcast Rate Limiting: ✓
• MAC Address Blocking: ✓
• IP-Based ACLs & Network Isolation: ✓
• MAC-Based Port Restriction: ✓
• Port Isolation: ✓
• Port Mirroring: ✓
• Jumbo Frames: ✓
• LLDP-MED: ✓
• Voice VLAN: ✓
• Loop Protection: ✓
Hardware
PoE Ports
• PoE+: 8
• PoE++: 16
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 32W
• PoE++: 64W
• Max. Power Consumption: 50W (Excluding PoE Output) | 450W (Including PoE Output)
• Power Method: (1) Universal input, 100—240V AC, 50/60 Hz | (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 550W
• Supported Voltage Range: 100—240V AC
• Management: Ethernet AR
• Heat Dissipation (Excluding PoE Output): 119 BTU/hr
• Weight
• Without mounting brackets: 5.1 kg (11.3 lb)
• With mounting brackets: 5.2 kg (11.5 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
• (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: ✓
• SFP+: ✓
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel
