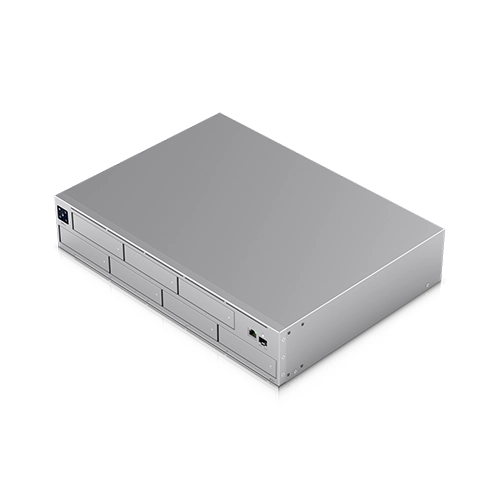

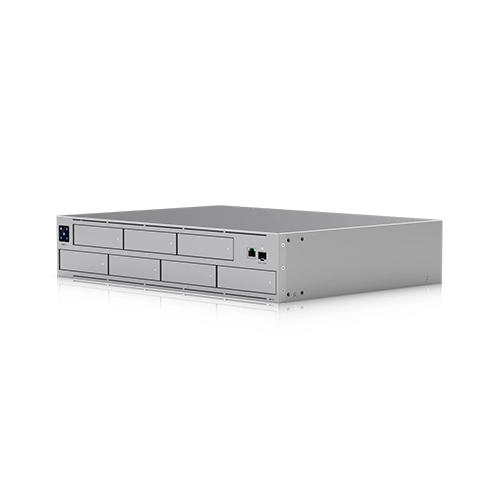

Ubiquiti Network Video Recorder Pro
A 2U-sized video recorder with (7) 2.5/3.5" HDD bays that can provide up to 60 days of storage for (24) 4K cameras or (70) Full HD cameras.
• Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
• UniFi Application Suite
• Protect: ✓
• Access: ✓
• Managed Cameras: (70) HD
• (35): 2K
• (24): 4K
• Storage Capacity: (7) 3.5" drive bays
• Data Protection: ✓
• Vantage Point: ✓
• Networking Interface: (1) 10G SFP+ (1) GbE
• Power Redundancy: ✓
• Form Factor: Rack mount (2U)
• Door Access Support: ✓
Hardware
• Hard Drive Capacity: (7) 2.5/3.5" HDD / SSD support
• Max. Power Budget for Drives: 135W
• Max. Power Consumption: 160W
• Power Method: (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz | (1) USP-RPS DC input, 11.5V DC, 13.91A
• Power Supply: AC/DC, internal, 200W
• Processor: Quad ARM® Cortex®-A57 cores at 1.7GHz
• Memory: 8 GB
• Management: Ethernet
• Display: 1.3" touchscreen
• Weight
• Without mounting brackets: 9.2 kg (20.3 lb)
• With mounting brackets: 9.5 kg (20.8 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC
