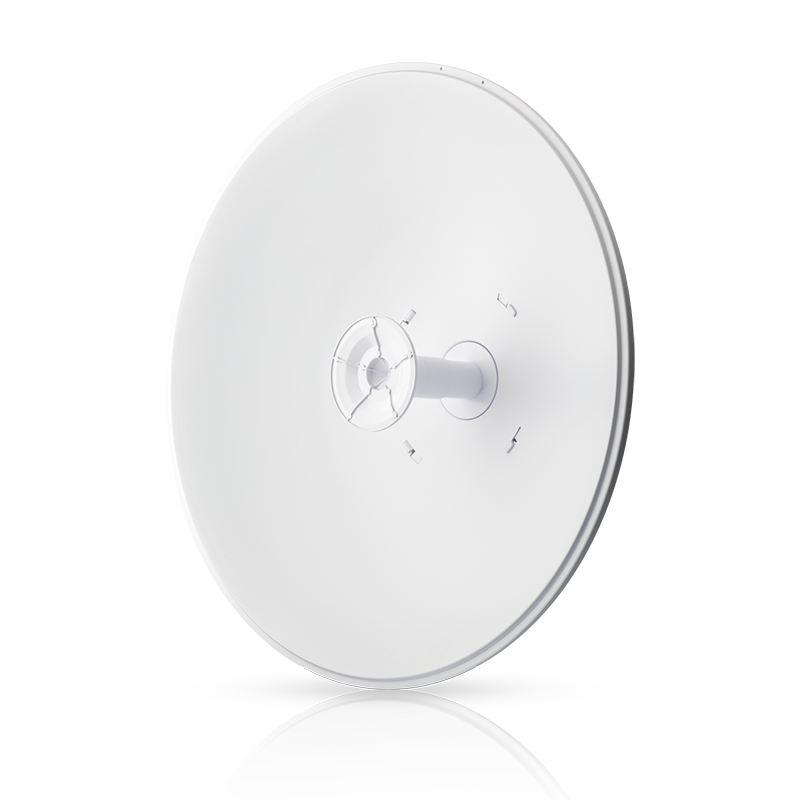

Ubiquiti airFiber X 5 GHz Slant 45
AF-5G30-S45
airFiber X 5 GHz, 30 dBi, Slant 45
AF-5G30-S45 5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links.
AF-5G30-S45
• Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2")
• Weight: With Mount: 7.4 kg (16.31 lb)
• Frequency: 5.1 - 5.9 GHz
• Gain: 30 dBi
• Max. VSWR: 1.6:1
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)
• Polarization: Dual Linear
• F/B Ratio: 30 dB
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
• NDAA Compliant: Yes
