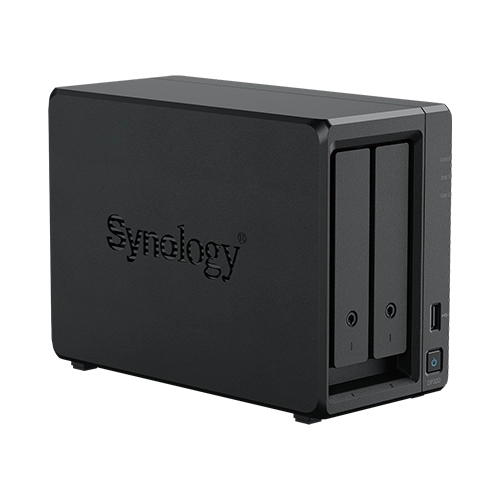

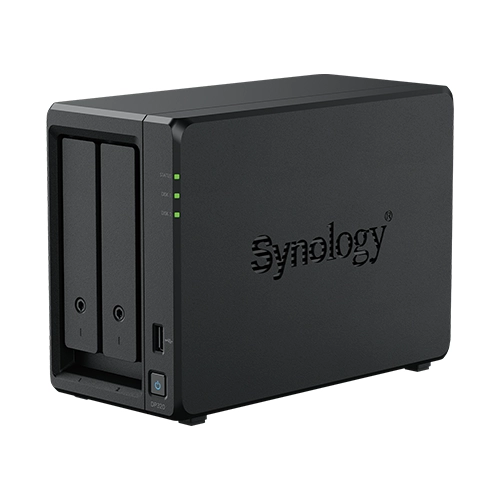

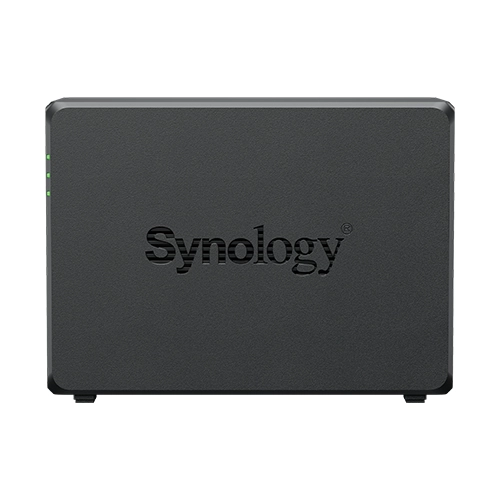

Synology DP320 Active Protect
The Synology ActiveProtect appliance DP320 is a data protection solution that comes pre-configured with hardware that runs ActiveProtect Manager, an operating system designed specifically for backup purposes. With its ability to perform backups, restore, deduplicate, replicate, and manage while ensuring security, the DP320 is an ideal backup server for your small and medium endpoints. It seamlessly integrates all current and future workloads across multiple sites into clusters, enabling centralized management through a single platform. With immutability, air-gapped backups, and access control, the DP320 protects against ransomware attacks, and secures all your data.
Suggested Backup Source 5 TB¹
Suggested Built-in Restored VM 1
Cluster Role Can function as an individual server or a managed server in a cluster
Form Factor Desktop
CPU AMD R1600 (2 cores)
Memory 8 GB
Storage Configuration 2 x 8 TB HDD (RAID 1)
Network Interface
• 1 x 1GbE RJ-45 Port (Management)
• 1 x 1GbE RJ-45 Port (Data transfer)
Dimensions (HxWxD) 166 x 106 x 223 mm
Weight 2.9 kg
AC input power voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, single phase
Power Consumption 21.07 Watt (Acess)
British Thermal Unit 71.85 BTU/hr (Acess)
Operating Environment
• Temperature: 32°F to 104°F (0°C to 45°C)
• Relative humidity: 8% to 80% RH
Storage Environment
• Temperature: -5°F to 140°F (-20°C to 60°C)
• Relative humidity: 5% to 95% RH
